View Issue Details[ Jump to Notes ] [ Issue History ] [ Print ]
ID
0052379
TypeCategorySeverityReproducibilityDate SubmittedLast Update
feature request[POS2] POSmajorhave not tried2023-05-08 12:062023-06-19 15:09
ReporterebecerraView Statuspublic
Assigned Toebecerra
PrioritynormalResolutionfixedFixed in Version
StatusclosedFix in branchFixed in SCM revision
ProjectionnoneETAnoneTarget Version
OSAnyDatabaseAnyJava version
OS VersionDatabase versionAnt version
Product VersionSCM revision
Merge Request Statusapproved
Review Assigned To
OBNetwork customerNo
Support ticket
Regression level
Regression date
Regression introduced in release
Regression introduced by commit
Triggers an Emergency PackNo
Summary

0052379: The payment information shown in HWM display must be relative to prepayment or split check

DescriptionWhen using prepaid or split checks, the payment information displayed in the HWM must be linked to the subtotal which is selected instead off for the whole ticket.

Case 1: For normal payments must be like currently (no changes)(Use whole ticket)

Case 2: Ticket with prepayments

Case 3. Ticket with split check
Steps To ReproduceCase 1:

In this example the ticket total amount is 17.90

1. Create a ticket and add products
2. Overpay it with Cash

     Check the HWM display:
       - Paid: Total ticket amount
       - Change: Cash change amount

     See: I_52379-Standard.png

Case 2 (Terminal must be configured to allow prepayments):

Pre: prepayments are configured as 50% and the ticket total amount is 17.90

1. Create a ticket and add products
2. Select a business partner
3. Select a delivery condition different from "Pick and Carry"
4. Select the prepayment section (subtotal 1) and overpay it with Cash (10.00)

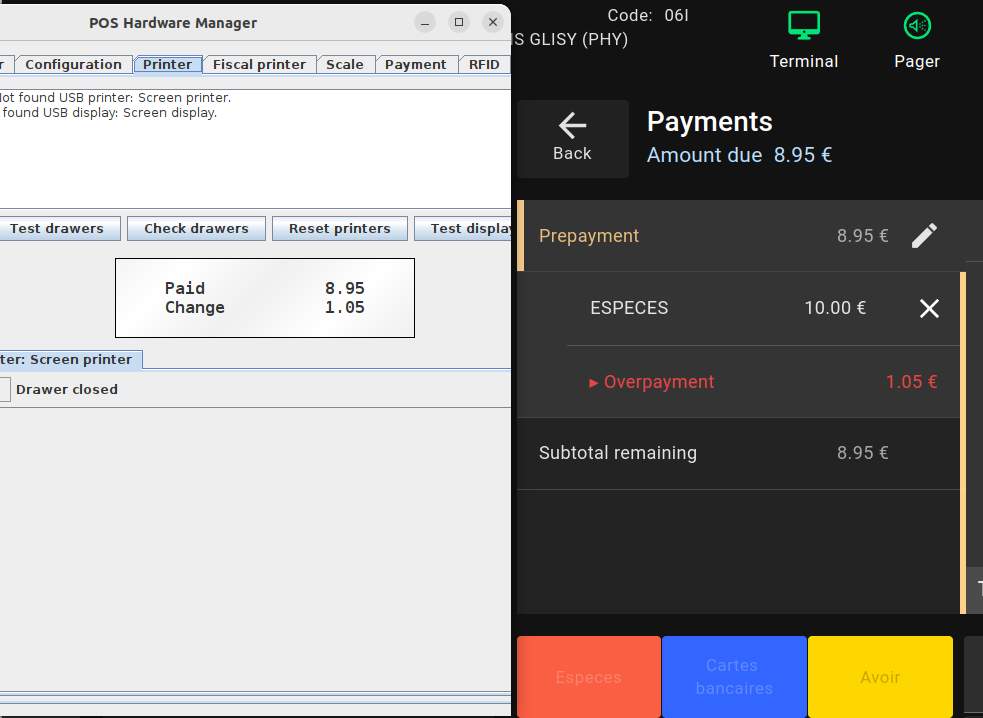

     Check the HWM display:
       - Paid: 8.95
       - Change: 1.05

     See: I_52379-Prepayment.png

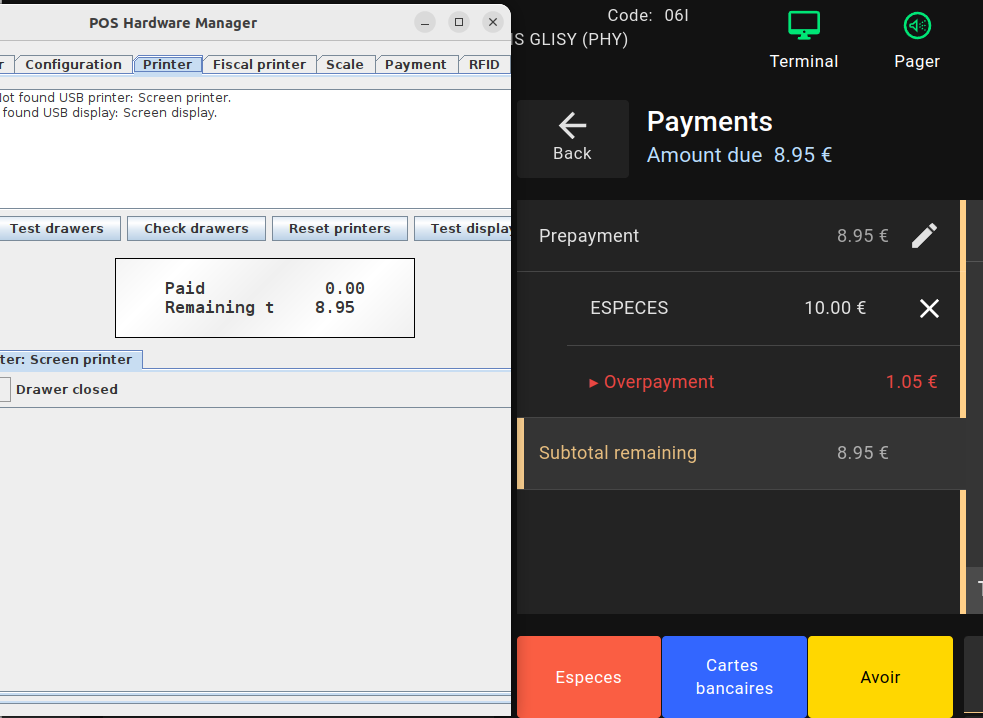

5. Select the "Subtotal remaining" section

     Check the HWM display:
       - Paid: 0.00
       - Remaining to pay: 8.95

     See: I_52379-SplitCheck-Remaining.png

Case 3:

In this example the ticket total amount is 17.90 and split check in two equals parts

1. Create a ticket and add products
2. Go to payment window and "Split Check" in two equals parts
3. Select the "Subtotal - 1" section

       - Paid: 0.00
       - Remaining to pay: 8.95

add a payment to overpay it with Cash (10.00)

     Check the HWM display:
       - Paid: 8.95
       - Change: 1.05

     See: I_52379-SplitCheck-Sub1.png

4. Select the "Subtotal - 2" section

       - Paid: 0.00
       - Remaining to pay: 8.95

and overpay it with Card (10.00)

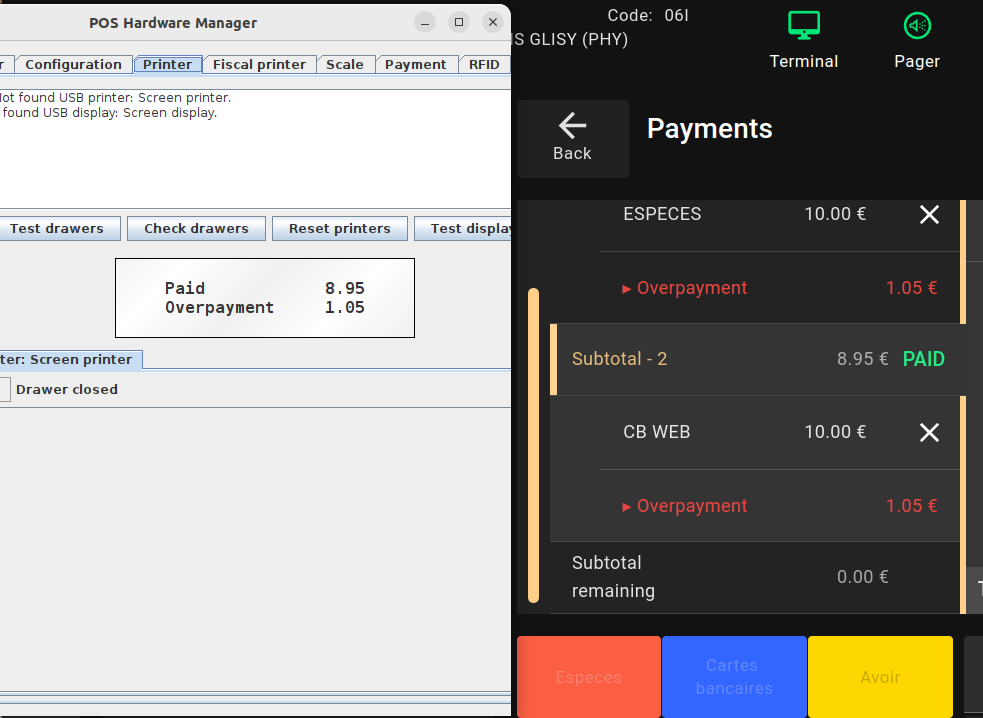

     Check the HWM display:
       - Paid: 8.95
       - Overpayment: 1.05

     See: I_52379-SplitCheck-Sub2.png

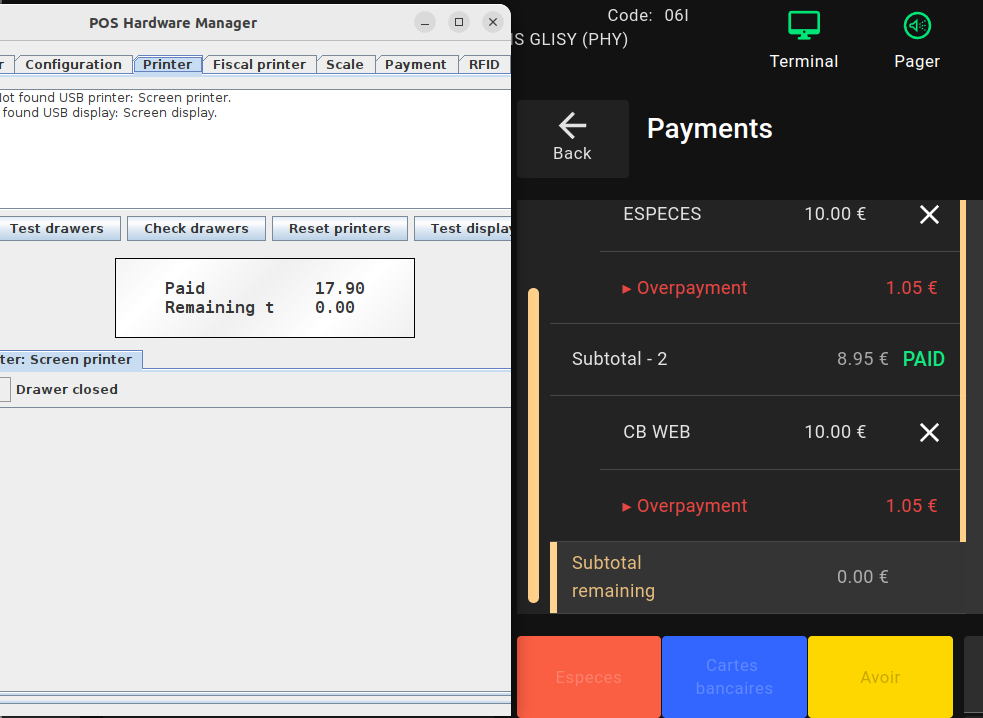

5. Select the "Subtotal remaining" section

     Check the HWM display:
       - Paid: 17.90
       - Remaining to pay: 0.00

     See: I_52379-SplitCheck-Remaining.png
TagsNo tags attached.
Attached Filespng file icon I_52379-Standard.png [^] (54,062 bytes) 2023-05-08 12:08


png file icon I_52379-Prepayment.png [^] (66,601 bytes) 2023-05-08 12:30


png file icon I_52379-Prepayment-Remaining.png [^] (68,598 bytes) 2023-05-08 12:30


png file icon I_52379-SplitCheck-Sub1.png [^] (70,216 bytes) 2023-05-08 12:31


png file icon I_52379-SplitCheck-Sub2.png [^] (71,098 bytes) 2023-05-08 12:31


png file icon I_52379-SplitCheck-Remaining.png [^] (70,897 bytes) 2023-05-08 12:31

- Relationships [ Relation Graph ] [ Dependency Graph ]
depends on backport 005238023Q2.2 closedebecerra The payment information shown in HWM display must be relative to prepayment or split check
depends on backport 005238123Q1.4 closedebecerra The payment information shown in HWM display must be relative to prepayment or split check

-  Notes
(0149473)
hgbot (developer)
2023-05-09 10:06

 Merge Request created: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.posterminal/-/merge_requests/1182 [^]
(0149474)
hgbot (developer)
2023-05-09 10:12

 Merge Request created: https://gitlab.com/openbravo/product/pmods/org.openbravo.pos2/-/merge_requests/1769 [^]
(0151307)
hgbot (developer)
2023-06-19 15:08

 Merge request merged: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.posterminal/-/merge_requests/1182 [^]
(0151308)
hgbot (developer)
2023-06-19 15:08

 Directly closing issue as related merge request is already approved.

Repository: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.posterminal [^]
Changeset: a3f3f944a83d08a53c9f6f6cfe60fb3a967922fd
Author: Eduardo Becerra (OB) <eduardo.becerra@openbravo.com>
Date: 19-06-2023 13:08:25
URL: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.posterminal/-/commit/a3f3f944a83d08a53c9f6f6cfe60fb3a967922fd [^]

Fixes ISSUE-52379: The payment information shown in the HWM display shows info about the current subtotal

---
M web-test/external-device/printing/PrintTemplateGeneration.test.js
M web-test/external-device/printing/PrintUtils.test.js
M web-test/external-device/printing/TicketPrinter.test.js
M web/org.openbravo.retail.posterminal/app/external-device/printing/PrintUtils.js
M web/org.openbravo.retail.posterminal/app/external-device/printing/TicketPrinter.js
M web/org.openbravo.retail.posterminal/res/displaytotal.xml
---
(0151309)
hgbot (developer)
2023-06-19 15:09

 Repository: https://gitlab.com/openbravo/product/pmods/org.openbravo.pos2 [^]
Changeset: a4f94f4f9701e22d30f327f12e9c6704c7597a09
Author: Eduardo Becerra (OB) <eduardo.becerra@openbravo.com>
Date: 19-06-2023 13:09:57
URL: https://gitlab.com/openbravo/product/pmods/org.openbravo.pos2/-/commit/a4f94f4f9701e22d30f327f12e9c6704c7597a09 [^]

Related to ISSUE-52379: The payment information shown in the HWM display shows info about the current subtotal

---
A web-jspack/org.openbravo.pos2/src/model/global/__test__/SetCurrentPaymentSubtotal.test.js
A web-jspack/org.openbravo.pos2/src/model/global/actions/SetCurrentPaymentSubtotal.js
A web-jspack/org.openbravo.pos2/src/model/global/actions/SetSelectedPaymentSubtotal.js
A web-jspack/org.openbravo.pos2/src/model/ticket/actions/PaymentDisplay.js
A web-jspack/org.openbravo.pos2/src/model/ticket/actions/__test__/PaymentDisplay.test.js
M web-jspack/org.openbravo.pos2/src/components/Payments/PaymentList/SubtotalsGrid.jsx
M web-jspack/org.openbravo.pos2/src/components/Payments/PaymentPanel/__mock__/paymentsInitialization.js
M web-jspack/org.openbravo.pos2/src/model/global/GlobalExtension.js
M web-jspack/org.openbravo.pos2/src/model/ticket/TicketExtension.js
M web-jspack/org.openbravo.pos2/src/model/ticket/__test__/RevertUnpaidSubtotalsUserAction.test.js
M web-jspack/org.openbravo.pos2/src/model/ticket/__test__/SplitFromOrderUserAction.test.js
M web-jspack/org.openbravo.pos2/src/model/ticket/__test__/SplitPaymentEqualPartsUserAction.test.js
M web-jspack/org.openbravo.pos2/src/model/ticket/user-actions/RevertUnpaidSubtotals.useraction.js
M web-jspack/org.openbravo.pos2/src/model/ticket/user-actions/SplitFromOrder.useraction.js
M web-jspack/org.openbravo.pos2/src/model/ticket/user-actions/SplitPaymentByAmount.useraction.js
M web-jspack/org.openbravo.pos2/src/model/ticket/user-actions/SplitPaymentEqualParts.js
M web-jspack/org.openbravo.pos2/src/model/user-interface/UIExtension.js
M web-jspack/org.openbravo.pos2/src/model/user-interface/__test__/SwitchToPayments.test.js
M web-jspack/org.openbravo.pos2/src/model/user-interface/user-actions/SwitchToPayments.js
R web-jspack/org.openbravo.pos2/src/model/user-interface/actions/SetSelectedPaymentSubtotal.js
---
(0151310)
hgbot (developer)
2023-06-19 15:09

 Merge request merged: https://gitlab.com/openbravo/product/pmods/org.openbravo.pos2/-/merge_requests/1769 [^]

- Issue History
Date Modified Username Field Change
2023-05-08 12:06 ebecerra New Issue
2023-05-08 12:06 ebecerra Assigned To => Retail
2023-05-08 12:06 ebecerra OBNetwork customer => No
2023-05-08 12:06 ebecerra Triggers an Emergency Pack => No
2023-05-08 12:08 ebecerra File Added: I_52379-Standard.png
2023-05-08 12:30 ebecerra Assigned To Retail => ebecerra
2023-05-08 12:30 ebecerra Status new => scheduled
2023-05-08 12:30 ebecerra Description Updated View Revisions
2023-05-08 12:30 ebecerra Steps to Reproduce Updated View Revisions
2023-05-08 12:30 ebecerra File Added: I_52379-Prepayment.png
2023-05-08 12:30 ebecerra File Added: I_52379-Prepayment-Remaining.png
2023-05-08 12:31 ebecerra File Added: I_52379-SplitCheck-Sub1.png
2023-05-08 12:31 ebecerra File Added: I_52379-SplitCheck-Sub2.png
2023-05-08 12:31 ebecerra File Added: I_52379-SplitCheck-Remaining.png
2023-05-08 12:31 ebecerra Description Updated View Revisions
2023-05-08 12:37 ebecerra Status scheduled => acknowledged
2023-05-08 12:38 ebecerra Status acknowledged => scheduled
2023-05-08 14:21 guilleaer Description Updated View Revisions
2023-05-08 14:21 guilleaer Steps to Reproduce Updated View Revisions
2023-05-09 10:06 hgbot Merge Request Status => open
2023-05-09 10:06 hgbot Note Added: 0149473
2023-05-09 10:12 hgbot Note Added: 0149474
2023-06-19 08:57 hgbot Merge Request Status open => approved
2023-06-19 15:08 hgbot Note Added: 0151307
2023-06-19 15:08 hgbot Resolution open => fixed
2023-06-19 15:08 hgbot Status scheduled => closed
2023-06-19 15:08 hgbot Fixed in Version => RR23Q3
2023-06-19 15:08 hgbot Note Added: 0151308
2023-06-19 15:09 hgbot Note Added: 0151309
2023-06-19 15:09 hgbot Note Added: 0151310
