View Issue Details[ Jump to Notes ] [ Issue History ] [ Print ]
ID
0032153
TypeCategorySeverityReproducibilityDate SubmittedLast Update
defect[Openbravo ERP] A. Platformmajorsometimes2016-02-05 15:102016-08-30 12:42
ReporterlorenzofidalgoView Statuspublic
Assigned ToNaroaIriarte
PrioritynormalResolutionfixedFixed in Version3.0PR16Q4
StatusclosedFix in branchFixed in SCM revisionf945e4c7788e
ProjectionnoneETAnoneTarget Version
OSAnyDatabaseAnyJava version
OS VersionDatabase versionAnt version
Product VersionmainSCM revision
Review Assigned Toalostale
Web browserGoogle Chrome
ModulesCore
Regression level
Regression date
Regression introduced in release
Regression introduced by commit
Triggers an Emergency PackNo
Summary

0032153: [RR16Q1] "Update Characteristics" process does not show characteristics to choose them after creating a new record

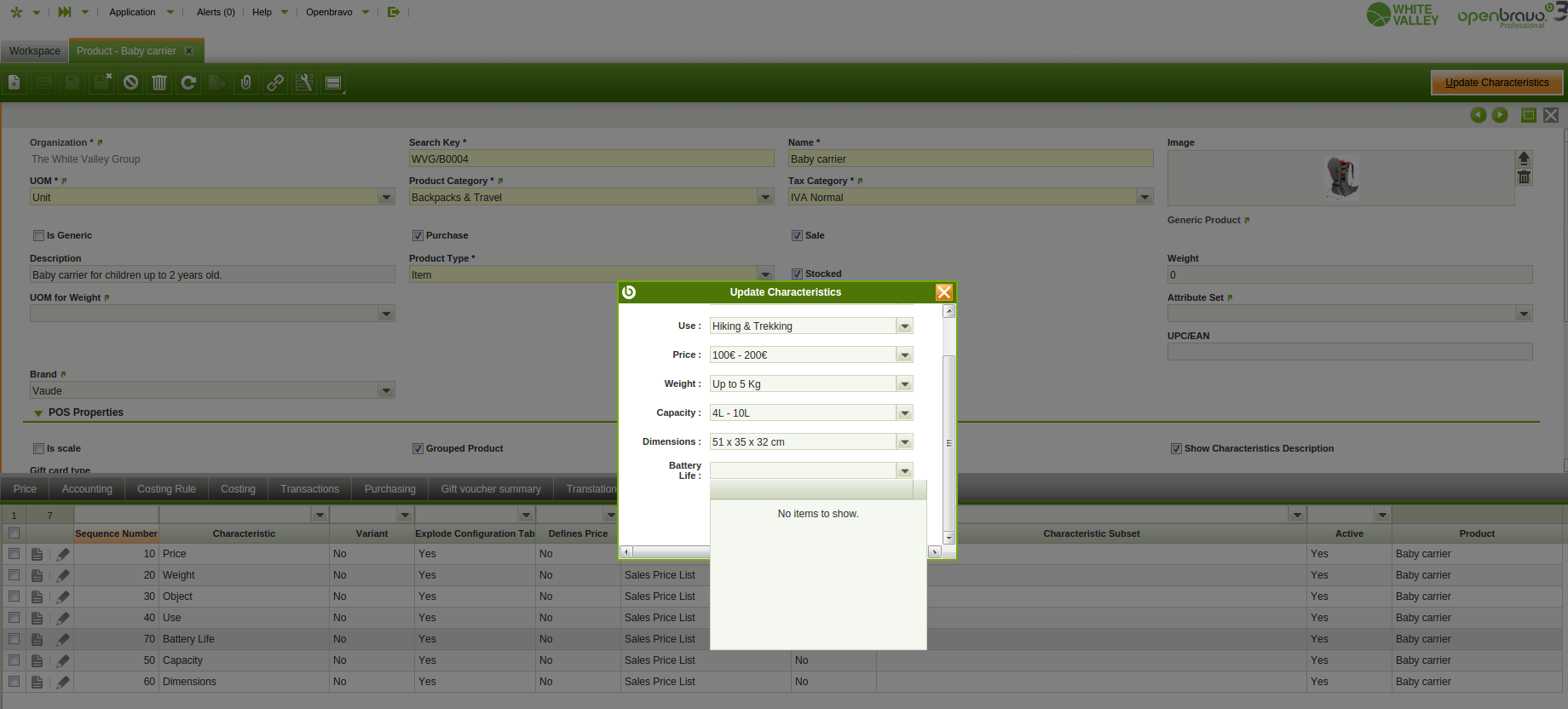

DescriptionAfter creating a new record in "Characteristics" tab, it is sometimes impossible to choose a characteristic value to the just created characteristic. It is stuck in "No items to show".
Steps To Reproduce1-Login POS backend as Openbravo and go to "Product" window.
2-Select a product with a few invariants (ie. Alpine skiing backpack 27 L) and go to "Characteristics" tab
3-Click "Update Characteristics" process.
4-Quickly after previous step, click dropdown arrow and check "No items to show" appear.

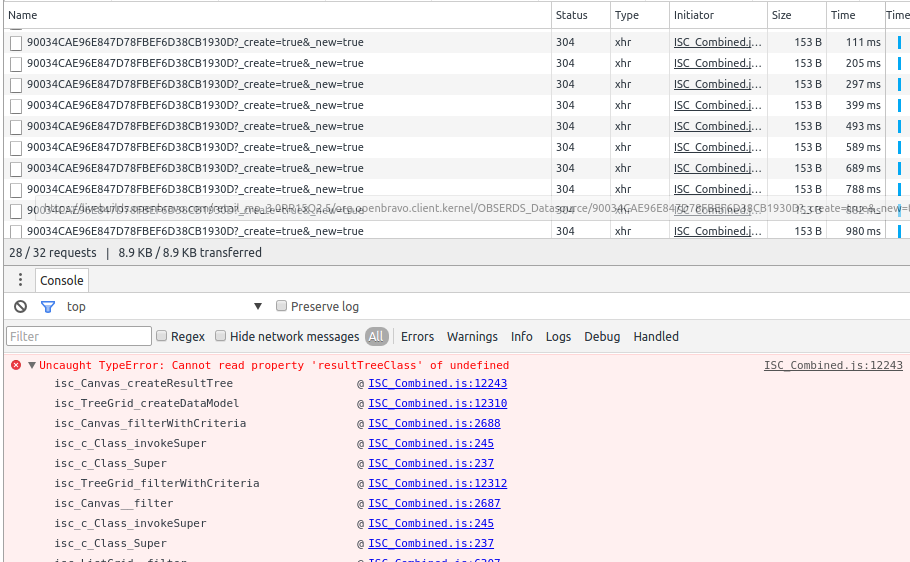

With browser's dev tools tools you can check:
* Just after step 3, many identical requests are executed to create new datasources (up to 4 per invariant)
* If step 4 is executed before the request to create the datasource for selected combo, the defined problem appears. In this case, the following js error can be seen in console:
ISC_Combined.js:12243 Uncaught TypeError: Cannot read property 'resultTreeClass' of undefinedisc_Canvas_createResultTree
  @ ISC_Combined.js:12243isc_TreeGrid_createDataModel
  @ ISC_Combined.js:12310isc_Canvas_filterWithCriteria
  @ ISC_Combined.js:2688isc_c_Class_invokeSuper
  @ ISC_Combined.js:245isc_c_Class_Super
  @ ISC_Combined.js:237isc_TreeGrid_filterWithCriteria
  @ ISC_Combined.js:12312isc_Canvas__filter
  @ ISC_Combined.js:2687isc_c_Class_invokeSuper
  @ ISC_Combined.js:245isc_c_Class_Super
  @ ISC_Combined.js:237isc_ListGrid__filter
  @ ISC_Combined.js:6307isc_Canvas_fetchData
  @ ISC_Combined.js:2659isc_c_Class_invokeSuper
  @ ISC_Combined.js:245isc_c_Class_Super
  @ ISC_Combined.js:237isc_ListGrid_fetchData
  @ ISC_Combined.js:6044isc_c_Class_invokeSuper
  @ ISC_Combined.js:245isc_c_Class_Super
  @ ISC_Combined.js:237isc.OBTreeItemTree.addProperties.fetchData
  @ 1f025b6….js:1281isc.OBTreeItemTree.addProperties.show
  @ 1f025b6….js:1272tree.show
  @ 1f025b6….js:2929isc.OBTreeItem.addProperties.toggleTreePicker
  @ 1f025b6….js:1265isc.OBTreeItem.addProperties.showPicker
  @ 1f025b6….js:1265isc.A.pickerIconDefaults.click
  @ ISC_Combined.js:8298isc_FormItem__iconClick
  @ ISC_Combined.js:8699isc_DynamicForm_handleClick
  @ ISC_Combined.js:8198isc_c_EventHandler_bubbleEvent
  @ ISC_Combined.js:1336isc_c_EventHandler_handleClick
  @ ISC_Combined.js:1202isc_c_EventHandler__handleMouseUp
  @ ISC_Combined.js:1191isc_c_EventHandler_handleMouseUp
  @ ISC_Combined.js:1185isc_c_EventHandler_dispatch
  @ ISC_Combined.js:1410(anonymous function)
TagsPerformance
Attached Filespng file icon UpdateCharacteristics.png [^] (152,445 bytes) 2016-02-05 15:10


png file icon Selection_057.png [^] (132,151 bytes) 2016-02-26 10:21

- Relationships [ Relation Graph ] [ Dependency Graph ]
related to feature request 0027490 closedrafademiguel Display in product form view hierarchy of the characteristics and the description just for one level
related to defect 0039227 closedcaristu Error with tree reference fields in the form personalization button

-  Notes
(0084511)
alostale (manager)
2016-02-25 14:36

 I can't reproduce the issue locally neither in live.builds.

Can you provide more information about the environment you reproduce it?

Also it would be useful to get:
  - openbravo.log if something appears there
  - js errors if any
  - request performed when opening the drop down, with the time it took and response
(0084559)
alostale (manager)
2016-02-26 12:07

 4 requests to create datasource are executed for each field shown in the popup. Duplication is caused by [1], where there are two invocations to super, each of them result in 2 calls for ds creation.

[1] https://code.openbravo.com/erp/devel/pi/file/fd863146a4f4/web/js/productCharacteristicsProcess.js#l171 [^]
(0089480)
hgbot (developer)
2016-08-29 09:31

 Repository: erp/devel/pi
Changeset: f945e4c7788eb722cc9e08edbce0bc173e4f3650
Author: Naroa Iriarte <naroa.iriarte <at> openbravo.com>
Date: Tue Aug 23 16:15:02 2016 +0200
URL: http://code.openbravo.com/erp/devel/pi/rev/f945e4c7788eb722cc9e08edbce0bc173e4f3650 [^]

Fixed issue 32153: Update Characteristic process was not working fine

There were 4 request to create datasources for each characteristic, this was happening on one hand because there were two calls to the super and also because call to OB.Datasource.get() was being executed in two different places. Removing the duplicated super fixed part of the problem, to fix the other part, now a condition has been added in the ob-tree-item class. This condition checks if there is a concrete property (showPopupIconWindow) set to false. If it is set to false the magnifying glass icon will not be created and the OBTreeItemPopupWindow neither, so the uneeded call to the OB.Datasource.get() will not be done.
There was another problem also, if the dropdown of a characteristic was clicked before the creation of the datasource, it was showing the message "No items to show" and a js error in the console. To fix this, a condition has been added. The condition checks if there exists a datasource and clicking the dropdown will not work until a datasource exist.

---
M modules/org.openbravo.client.application/web/org.openbravo.client.application/js/form/formitem/ob-formitem-tree.js
M web/js/productCharacteristicsProcess.js
---
(0089518)
hudsonbot (developer)
2016-08-29 21:02

 A changeset related to this issue has been promoted main and to the
Central Repository, after passing a series of tests.

Promotion changeset: https://code.openbravo.com/erp/devel/main/rev/bc86301d6ff4 [^]
Maturity status: Test
(0089550)
alostale (manager)
2016-08-30 12:42

 code reviewed

Tested in update characteristics popup as well as in tree reference selector drop down and popup.

- Issue History
Date Modified Username Field Change
2016-02-05 15:10 lorenzofidalgo New Issue
2016-02-05 15:10 lorenzofidalgo Assigned To => platform
2016-02-05 15:10 lorenzofidalgo File Added: UpdateCharacteristics.png
2016-02-05 15:10 lorenzofidalgo Web browser => Google Chrome
2016-02-05 15:10 lorenzofidalgo Modules => Core
2016-02-05 15:10 lorenzofidalgo Triggers an Emergency Pack => No
2016-02-25 14:36 alostale Note Added: 0084511
2016-02-25 14:36 alostale Assigned To platform => lorenzofidalgo
2016-02-25 14:36 alostale Status new => feedback
2016-02-26 10:20 alostale Web browser Google Chrome => Google Chrome
2016-02-26 10:20 alostale Steps to Reproduce Updated View Revisions
2016-02-26 10:21 alostale File Added: Selection_057.png
2016-02-26 10:21 alostale Assigned To lorenzofidalgo => platform
2016-02-26 10:21 alostale Status feedback => new
2016-02-26 10:22 alostale Status new => acknowledged
2016-02-26 12:01 alostale Relationship added related to 0027490
2016-02-26 12:07 alostale Note Added: 0084559
2016-06-23 10:11 NaroaIriarte Assigned To platform => NaroaIriarte
2016-07-07 09:11 NaroaIriarte Status acknowledged => scheduled
2016-08-29 09:31 hgbot Checkin
2016-08-29 09:31 hgbot Note Added: 0089480
2016-08-29 09:31 hgbot Status scheduled => resolved
2016-08-29 09:31 hgbot Resolution open => fixed
2016-08-29 09:31 hgbot Fixed in SCM revision => http://code.openbravo.com/erp/devel/pi/rev/f945e4c7788eb722cc9e08edbce0bc173e4f3650 [^]
2016-08-29 21:02 hudsonbot Checkin
2016-08-29 21:02 hudsonbot Note Added: 0089518
2016-08-30 12:39 alostale Tag Attached: Performance
2016-08-30 12:42 alostale Review Assigned To => alostale
2016-08-30 12:42 alostale Note Added: 0089550
2016-08-30 12:42 alostale Status resolved => closed
2016-08-30 12:42 alostale Fixed in Version => 3.0PR16Q4
2018-09-10 10:00 caristu Relationship added related to 0039227
