0017105: it is not use friendly to have all the buttons (header & lines) at the same level

Notes

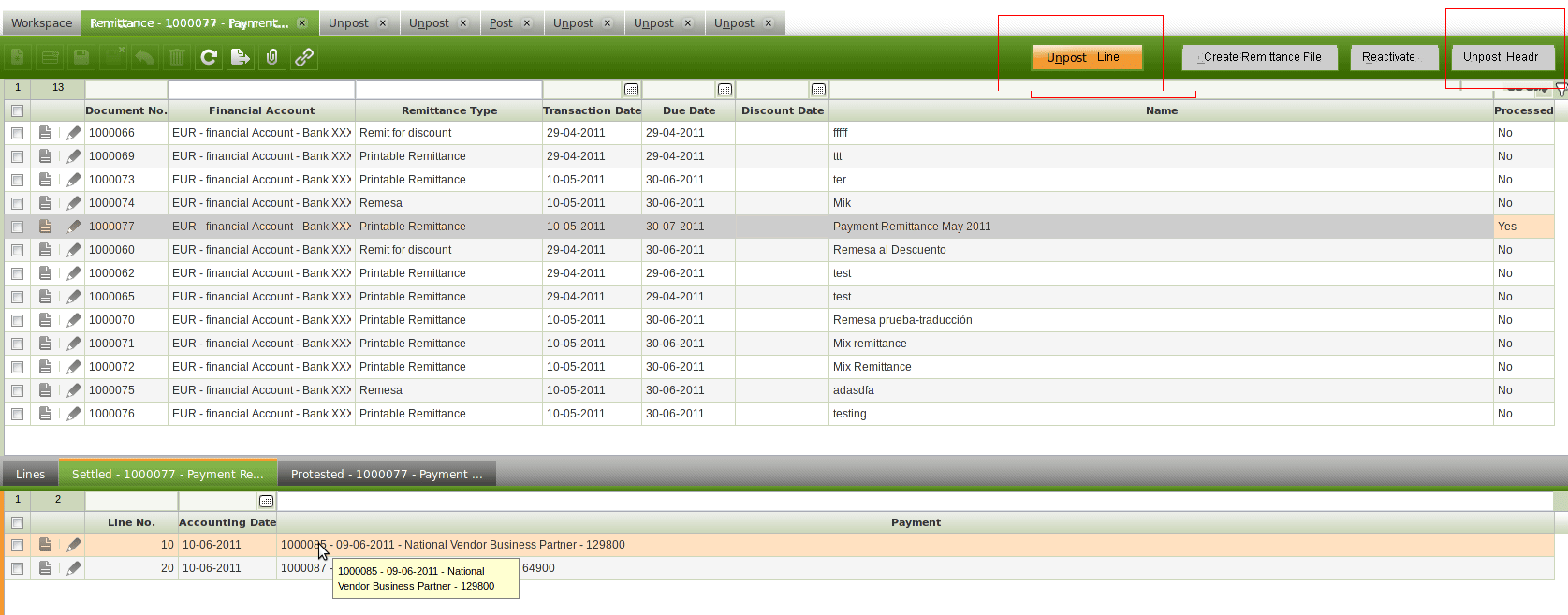

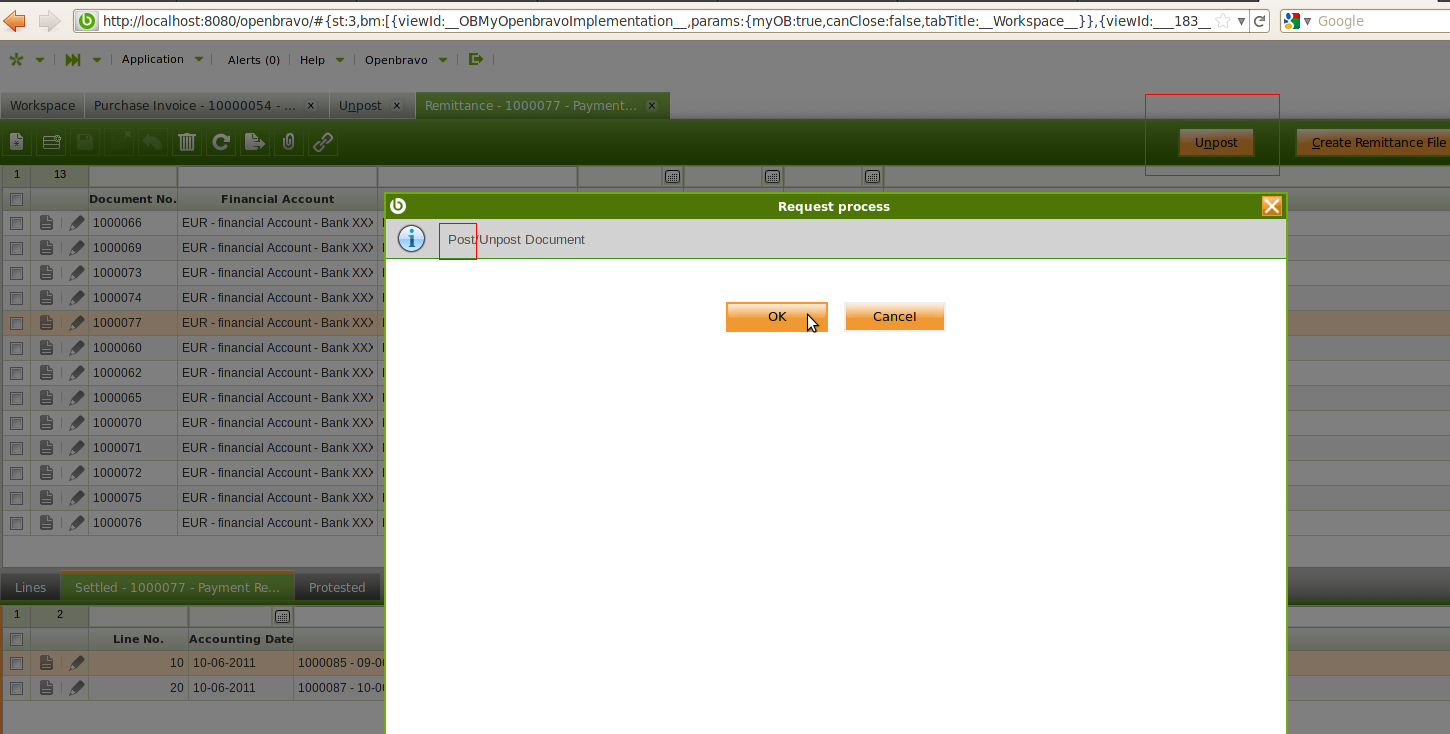

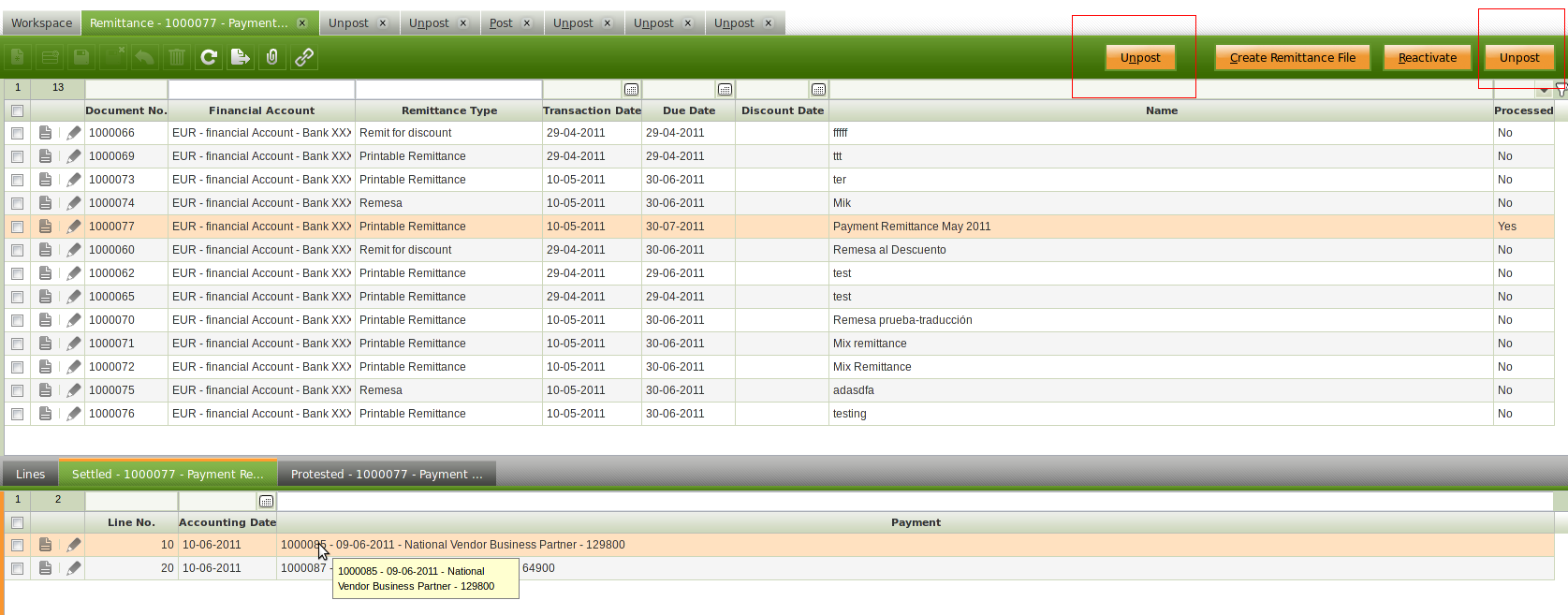

(0037036) rgoris (developer) 2011-05-16 17:36	This issue is a direct consequence of the decision we took earlier to allow displaying header-related process buttons when in lines. We did this to make document completion faster, e.g. when entering a sales order you must be able to complete the order when the focus is in lines (this is where you are when you want to complete the order). As line-specific processes are very rare and mostly sit in less common windows (see .csv file attached) few problems like this are expected. This said, in your case, ambiguity is caused by identical labeling. My first advice is to reconsider if you really need to (un)process on individual line level, perhaps redesign the process, but if you really have to, then it is best to rename the buttons to make them more specific: Unpost Header Unpost Line

(0037037) rgoris (developer) 2011-05-16 17:41	Second thing to solve is to split the Posted and Unposted processes where buttons and process pops are named accordingly.

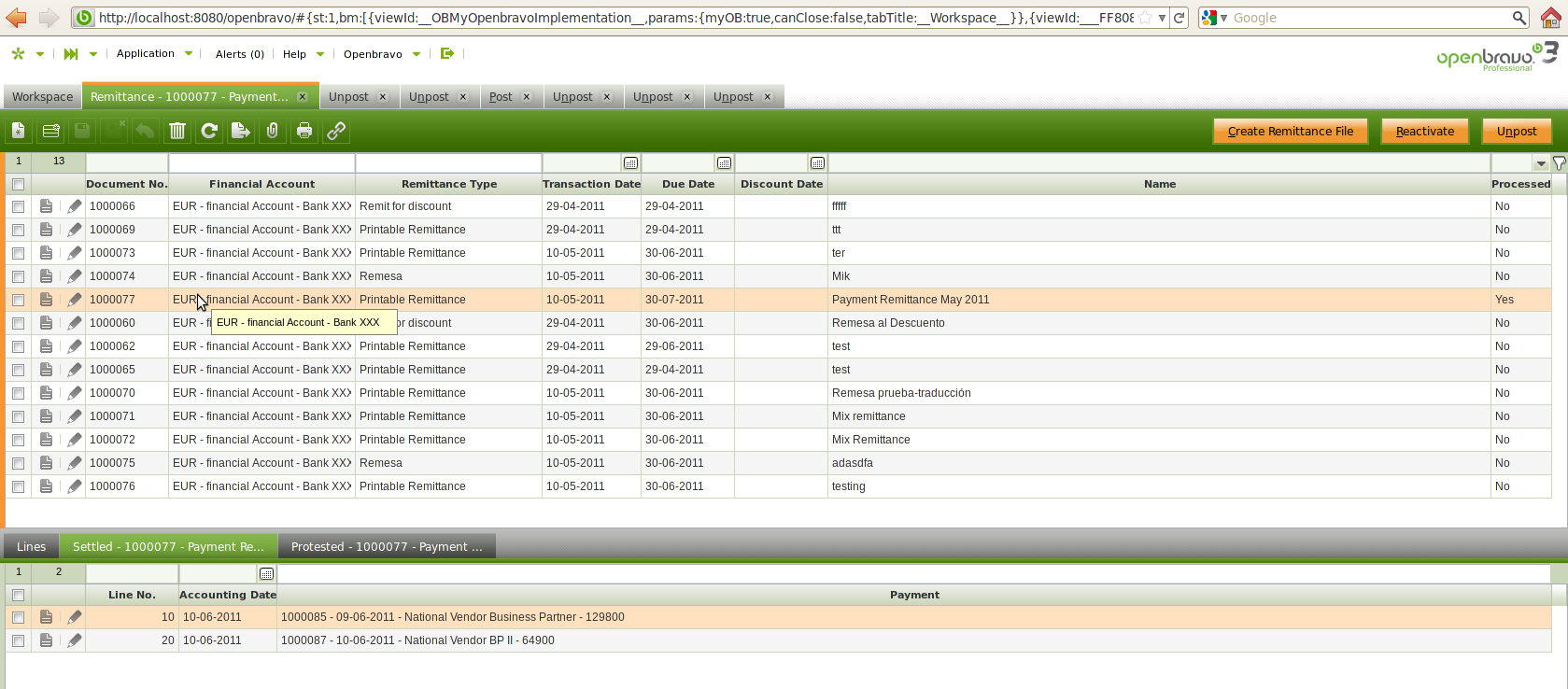

(0037039) rgoris (developer) 2011-05-16 18:51 edited on: 2011-05-16 18:57	Rethought: There is no problem i believe. Here is the logic: You need to post the header first before you can post lines. -> Following this logic you can never have two post buttons at a time You need to unpost all lines first to be able to unpost the header?? -> Following this logic you can never have two unpost buttons at a time

(0037284) psanjuan (manager) 2011-05-20 15:57	We can not be 100% sure of that every header-lines posting options will required first to post/unpost the header and second post/unpost the lines. There could not be just Post buttons but Process or other kind of buttons both at header and lines level. We need to find the right design solution which in my opinion it is not just to have 1 button for both header and lines. Header should have its own buttons, visible and working when the focus is on the header. Lines should have its own process buttons, visible and working when the focus is on the lines.

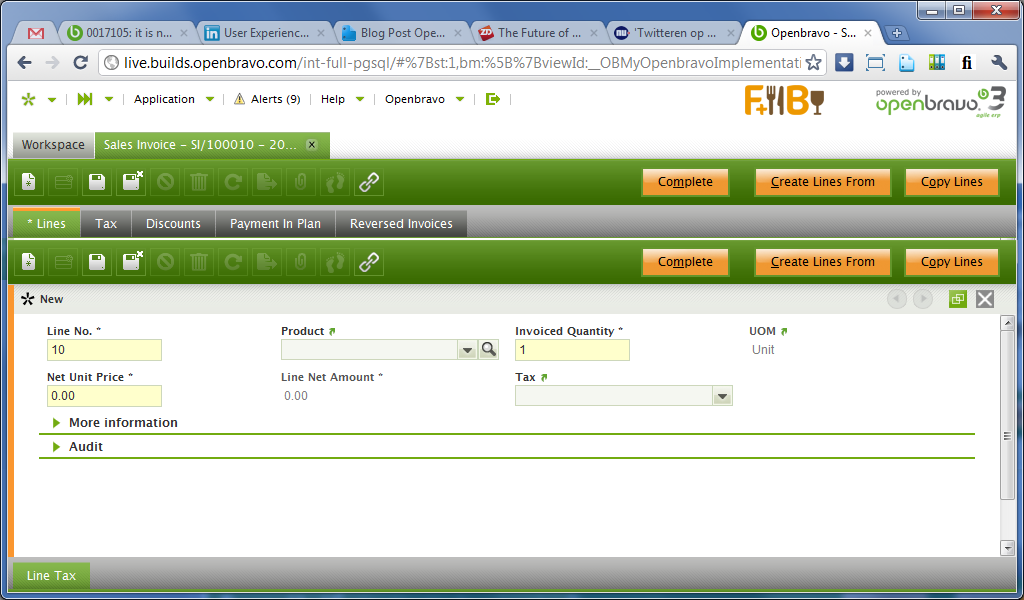

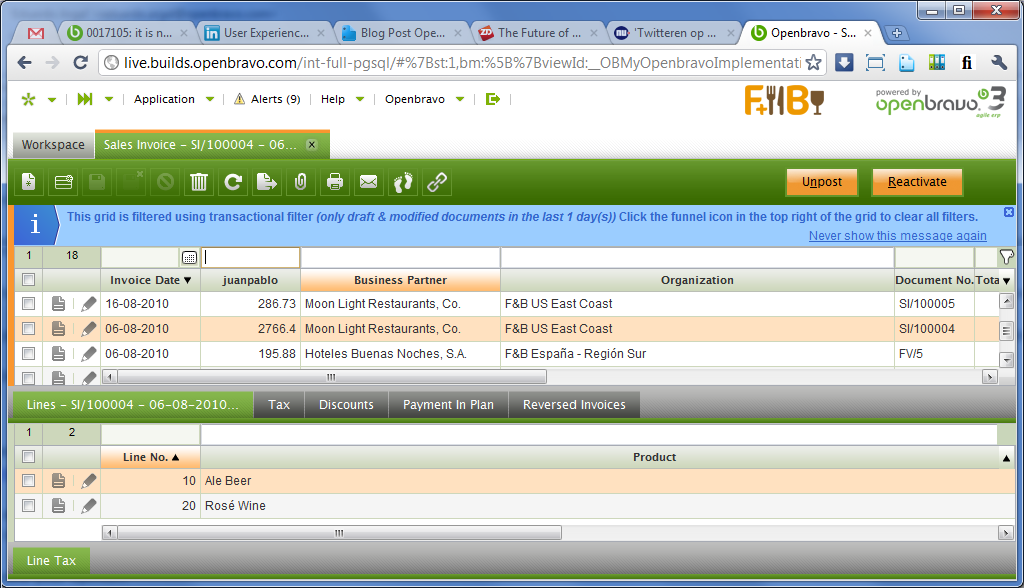

(0037290) rgoris (developer) 2011-05-20 17:46 edited on: 2011-05-20 17:54	Openbravo 3 master detail interaction design uses one fixed toolbar that contains both action buttons and process buttons. The actions and processes that are executed when pressing these buttons are applied to the selected object (a selected row or an open form) in an active level (parent or child or grandchild, etc.). The reason why the one fixed toolbar was chosen and not a dynamic toolbar (that appears in an active level when this level is activated) or two fixed toolbars (one for each level) is five-fold: 1) Optimal use of precious vertical real estate. In OB3 we introduced a two-level view which doubles the amount of data visible at once. We have optimized the page design as such that a two level view makes sense down to resolutions of 1024x600xpx (typical Netbook resolution) to avoid scrolling and to make a master-detail view worthwhile. See image below how Openbravo 3 looks like on aforementioned Netbook resolution. I do not see how to fit in another toolbar in the child level. 2) Redundancy. Having a toolbar for each individual level will mean that most action buttons will be repeated. This might look acceptable in a 50-50% screen level partition but in other cases, this look clumsy, if not unprofessional and - even worse - confusing for the user. See second image below. 3) Movement of objects (aka as "moving target"). Having dynamic individual toolbars for each levels means that they only appear when a row is selected. This means that once you do so, the toolbar is inserted between the tab bar and the grid and will suddenly push the grid down, hereby causing a motion "jerk". This can cause the user to lose his focus, or even worse, this can cause the selected row to move outside the active area. Selected objects should not move. 4) Infrequency of occasions does not justify sacrificing overall usability. Although I understand and empathize with the problem you have in your screen design, I see this as an exception. The majority of the Openbravo windows only have processes applied to their headers. The windows that do have process applied to their children, are mostly the more obscure windows, badly designed windows/processes or configuration windows. Openbravo 3 was designed for high productivity of the majority of the use cases and lesser so for exceptional cases. FYI attached in the issue, an Excel file shows the windows that have processes in child level or deeper. 5) Reduced cognitive load. Having a dedicated toolbar for each level would mean that typical header processes (such as Copy Lines) will only appear in the header. Although logical from a system POV, for the user this would not make sense when in lines. A process such as Copy Lines would be expected in the lines. Having two toolbars means that you force the user in decision making on where to look. Having the process buttons in one place, regardless of the active level, reduces the cognitive load: the user always know where to look. But this theory and we need a solution for your windows. As per my comment in the issue, i do not believe we can two Post or two Unpost processes for header and lines at a time. But even if it were possible, then this case is unique (having the same process for both header and lines) and I am strongly against the possibility. Within an ERP system, if a process such as Complete, Post and Process (the last one is way too unspecific, but this is a side note) is applied to a parent object, this implies that all children objects will also be completed, posted, processed, etc. It goes against all logic when a user is able to complete, post, process, etc a parent and then see children with status unposted. If the business process forces you to have the same process for header and lines, then it should be made very clear which level is affected by pressing a button. It should also be clear what is the status of each level (read only fields). So my recommended solutions (in order of preference) is to : (1) reconsider the design of the window or even the business flow (2) apply logic (if not in place already) that: * You need to post the header first before you can post lines -> Following this logic you can never have two post buttons at a time * You need to unpost all lines first to be able to unpost the header?? -> Following this logic you can never have two unpost buttons at a time (3) label the buttons appropriately: Post Line, Post Header, Unpost Line, Unpost Header (4) additionally (but not instead) we could add processes to the context menu (right mouse click) (5) contextual button coloring: this will not happen in GA but this idea might mitigate some of your pain. The idea is that, once we have https://issues.openbravo.com/view.php?id=16569 [^] in place (this is planned for GA) this means that a non-active level selected row will be gray. The same color coding can be used for the buttons that relate to that level. See image contextColoringButtons.png

(0037311) psanjuan (manager) 2011-05-23 12:38	A solution must be given for MP0

(0037330) rgoris (developer) 2011-05-23 14:42 edited on: 2011-05-24 00:24	Here is my proposed solution. it also aims to solve an other issue (messages appear in the wrong level) 1. We stick with the current implementation of showing both parent and child process buttons when in child level 2. A non-active grid cannot have orange selected row(s). Instead, they turn into gray. This is the "Level Awareness" fix we have scheduled. ( https://issues.openbravo.com/view.php?id=16569 [^] ) 3. Process button labels must be shortened where necessary. This is especially the case for Financial Accounts. In the attached images you can find shorter versions. 4. In case two identical processes exist for both parent and child, then labeling must be specific (e.g. Post Line) 5. Process buttons use adaptive coloring: if they pertain to an active level, they are orange. If they belong to a non-active level, they are still visible, but now in gray. (as a side note, i believe that this also indirectly helps to enhance the user´s level-awareness) 6. Completion/error/all messages appear in the level they apply to. E.g. if a user completes a sales order while in child level, the completion success message must appear in the header level. In case the other level is collapsed, the system will force it to expand in order to be able to show the message. Psarobe has created an issue for this. 7. Tooltips must be added to process buttons explaining the process into more detail, together with the level the process is applied to Find attached a sequence of annotated images that depicts all of the above.

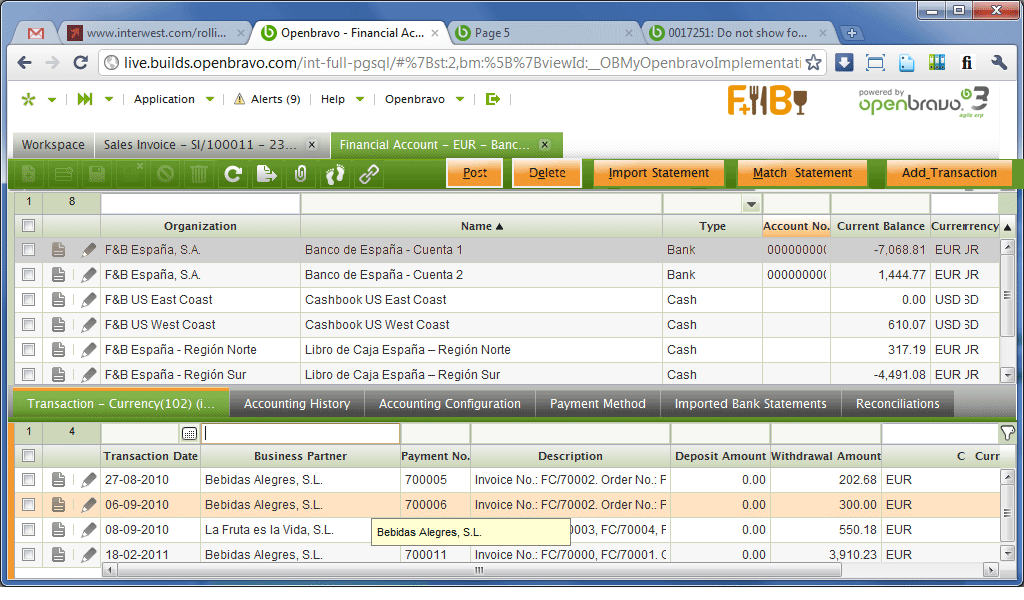

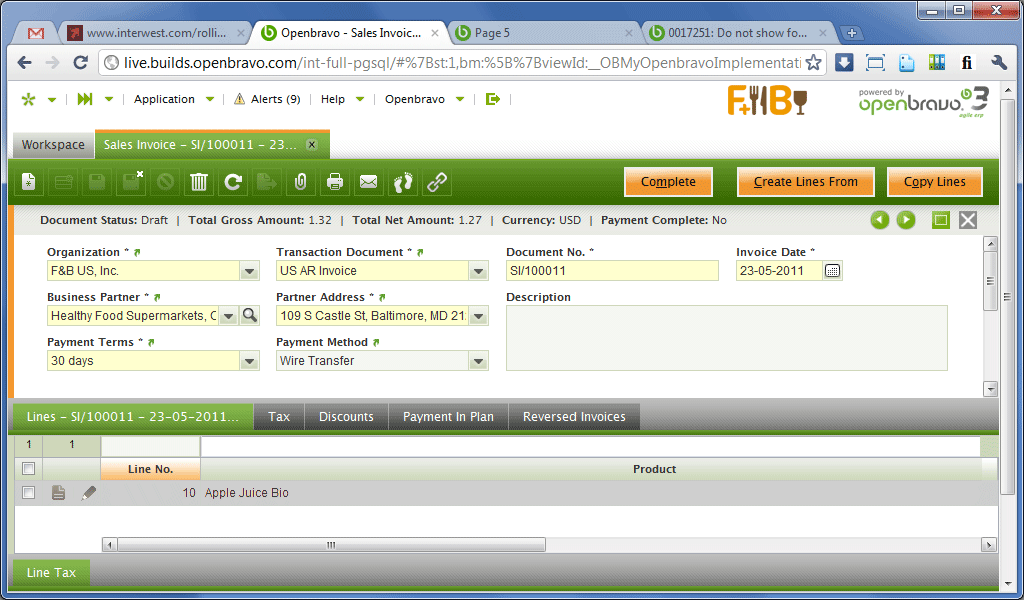

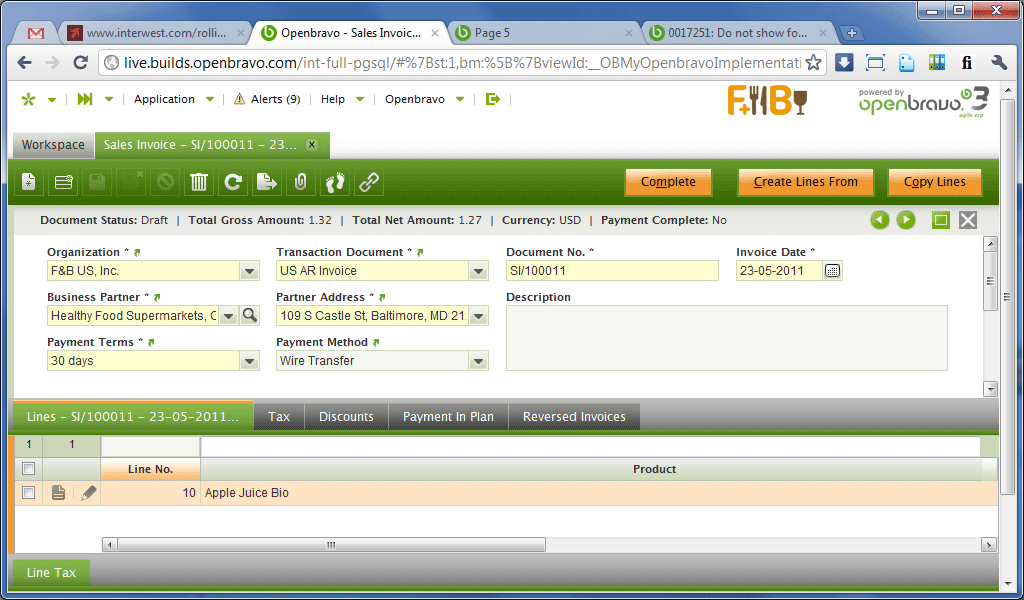

(0037360) rgoris (developer) 2011-05-24 01:09	I think is the best solution so far: It uses the button outline to communicate its dependency on the active level. It is much more subtle than the gray-orange differences but enough to get noticed. (IMG LAW 0006) Header level is active: header process buttons show a bright white outline (IMG LAW 0007) Lines level is active: header process buttons show a regular outline. (IMG LAW 0008) Financial account lines active: notice the different button outlines (Post and Delete are related to the lines)

(0037364) alostale (manager) 2011-05-24 10:18	As per discussion, current solution is to add a check in Tab not to show parent's buttons (defaulted to be shown). The rest of the solution will be implemented within next releases.

(0039202) alostale (manager) 2011-07-19 09:09	Fixed by: -Adding boolean not to display parent's buttons: https://code.openbravo.com/erp/devel/pi/rev/0c6d4d59d23a [^] -Visual hint: 0017326

Issue History
Date Modified	Username	Field	Change
2011-05-10 18:50	psanjuan	New Issue
2011-05-10 18:50	psanjuan	Assigned To	=> alostale
2011-05-10 18:50	psanjuan	Modules	=> Core
2011-05-10 18:53	psanjuan	Description Updated	View Revisions
2011-05-10 18:55	psanjuan	File Added: foco_header.png
2011-05-10 18:55	psanjuan	File Added: foco_lines.png
2011-05-10 18:58	psanjuan	File Added: lines.png
2011-05-16 09:50	alostale	Assigned To	alostale => rgoris
2011-05-16 17:29	rgoris	File Added: processes.csv
2011-05-16 17:36	rgoris	Note Added: 0037036
2011-05-16 17:39	rgoris	Relationship added	related to 0017044
2011-05-16 17:41	rgoris	Note Added: 0037037
2011-05-16 17:41	rgoris	Assigned To	rgoris => alostale
2011-05-16 17:41	rgoris	Status	new => scheduled
2011-05-16 17:41	rgoris	Target Version	=> 3.0MP0
2011-05-16 17:45	alostale	Assigned To	alostale => psanjuan
2011-05-16 18:31	psanjuan	Proposed Solution updated
2011-05-16 18:51	rgoris	Note Added: 0037039
2011-05-16 18:57	rgoris	Note Edited: 0037039	View Revisions
2011-05-20 15:57	psanjuan	Note Added: 0037284
2011-05-20 17:46	rgoris	File Added: contextColoringButtons.png
2011-05-20 17:46	rgoris	Note Added: 0037290
2011-05-20 17:53	rgoris	File Added: NetBooksResolution.png
2011-05-20 17:54	rgoris	File Added: GettingTight.png
2011-05-20 17:54	rgoris	Note Edited: 0037290	View Revisions
2011-05-23 12:38	psanjuan	Note Added: 0037311
2011-05-23 14:42	rgoris	Note Added: 0037330
2011-05-23 14:42	rgoris	File Added: LAW.zip
2011-05-23 19:27	dmitry_mezentsev	Assigned To	psanjuan => alostale
2011-05-24 00:23	rgoris	Issue Monitored: rgoris
2011-05-24 00:24	rgoris	Note Edited: 0037330	View Revisions
2011-05-24 01:07	rgoris	File Added: LAW_0006_Parent-Outline.png
2011-05-24 01:07	rgoris	File Added: LAW_0007_Child-Outline.png
2011-05-24 01:08	rgoris	File Added: LAW_0008_Mix-Outline.png
2011-05-24 01:09	rgoris	Note Added: 0037360
2011-05-24 10:18	alostale	Note Added: 0037364
2011-05-24 10:18	alostale	Priority	urgent => high
2011-05-24 10:34	rgoris	Relationship added	related to 0017326
2011-05-24 10:55	rgoris	Relationship added	related to 0017327
2011-05-24 10:56	rgoris	Relationship added	related to 0017328
2011-05-24 13:37	dmitry_mezentsev	Relationship added	blocks 0017334
2011-06-02 10:54	dmitry_mezentsev	Target Version	3.0MP0 => 3.0MP1
2011-06-22 19:26	dmitry_mezentsev	Target Version	3.0MP1 => 3.0MP2
2011-07-19 09:09	alostale	Note Added: 0039202
2011-07-19 09:09	alostale	Status	scheduled => closed
2011-07-19 09:09	alostale	Resolution	open => out of date
