View Issue Details[ Jump to Notes ] [ Issue History ] [ Print ]
ID
0014161
TypeCategorySeverityReproducibilityDate SubmittedLast Update
defect[Openbravo ERP] 04. Warehouse managementmajoralways2010-08-12 09:412010-09-13 12:38
ReporterRenateNieuwkoopView Statuspublic
Assigned Tosivaraman
PriorityhighResolutionfixedFixed in Version
StatusclosedFix in branchFixed in SCM revision8f81c01795f0
ProjectionnoneETAnoneTarget Version
OSAnyDatabaseAnyJava version
OS VersionDatabase versionAnt version
Product Version2.50MP20SCM revision
Review Assigned To
Web browser
ModulesCore
Regression level
Regression date
Regression introduced in release
Regression introduced by commit
Triggers an Emergency PackNo
Summary

0014161: Pareto report: ABC codes do not get assigned correctly

DescriptionWhen running the Pareto report the outcome show certain ABC codes. However, when assigning the ABC codes in the org specific tab of the product another code appears. See snapshots

Steps To ReproduceTake the latest version of the live build (I took postgres one)
As Openbravo Admin go to Warehouse Management || Analysis Tools || Pareto Product Report || Pareto Product Report
Click 'search' Check that in the report it appears the product "Boot" as "A"
Click 'update ABC'
Go to Master Data Management || Product || Product >> Org Specific for the product "Boot" and check that the abc field has incorrectly the value "C". It should be A as it appears in the Pareto report.

We had issue 8189 pending for quite a while, but the opposite was happening then: the report showed incorrect information, while the product was updated correctly.
In this case the report is showing correct information, but the product is updated incorrectly.
TagsNo tags attached.

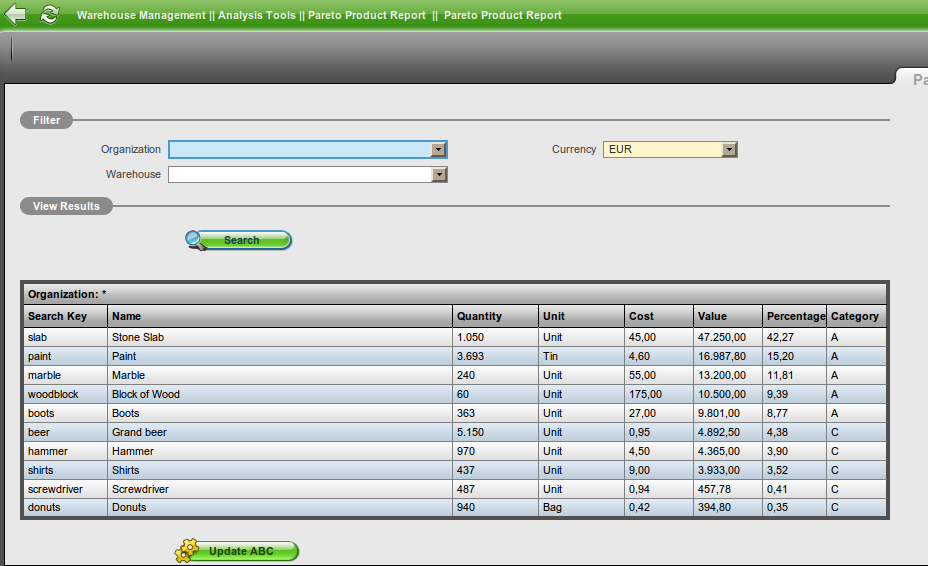

Attached Filespng file icon 120810Pareto1.png [^] (59,338 bytes) 2010-08-12 09:41

- Relationships [ Relation Graph ] [ Dependency Graph ]
related to defect 00081892.50MP7 closedgorkaion 250 VM: Pareto Report: Update ABC is executed incorrectly
related to defect 0010612 closedadrianromero Work Requirement: Rounding issue for Quantity field for WR created by MRP

-  Notes
(0030135)
hgbot (developer)
2010-08-19 08:05

 Repository: erp/devel/pi
Changeset: 8f81c01795f0ec7894975e6a1dc11843de20f23d
Author: Sivaraman Rajagopal <sivaraman.rajagopal <at> openbravo.com>
Date: Thu Aug 19 11:35:08 2010 +0530
URL: http://code.openbravo.com/erp/devel/pi/rev/8f81c01795f0ec7894975e6a1dc11843de20f23d [^]

Fixes issue 14161: Pareto report: ABC codes do not get assigned correctly

Root cause and solution:
The inaccuracy of floating point precision causes the issue as it computes one value in report and different value in update category. In order to fix it, the precision has been truncated to 6 digit. Hence, it is working fine as expected.

Impacts:
There is no impacts due to the change.

---
M src-db/database/model/functions/M_GET_PARETO_ABC.xml
---
(0030136)
sivaraman (reporter)
2010-08-19 08:15

 Steps to test:

Kindly follow the steps as given in 'Steps To Reproduce' section.
(0030198)
hudsonbot (developer)
2010-08-21 00:06

 A changeset related to this issue has been promoted to main after passing a series of tests and an OBX has been generated:

Changeset: http://code.openbravo.com/erp/devel/main/rev/8f81c01795f0 [^]
Merge Changeset: http://code.openbravo.com/erp/devel/main/rev/eedf97667060 [^]
Tests: http://builds.openbravo.com/view/int/ [^]
OBX: http://builds.openbravo.com/erp/core/obx/OpenbravoERP-2.50CI.18194.obx [^]
(0030219)
sureshbabu (reporter)
2010-08-23 10:55

 verified now system shows right value
(0030242)
RenateNieuwkoop (reporter)
2010-08-24 09:22

 Hi Sivaraman,

We spoke about the two different logics that were used: one to calculate the code for the report and one for the assigning of the code. Now it seems that the calculation of the assigning is being used, but can you specify the logic? It used to be that the boots product received the A code, now it gets a C, as tested in the live build today. We have an exercise in our Basic Functional Training that uses these data, so I'd like to understand why it's now a C. Also, why aren't there any B codes assigned, I just see A and C code.
This is the logic as I understand it:
The average cost is being calculated by running the 'Generate Average Cost' process. Then for the Pareto report, that average cost gets multiplied by the quantity in stock for the products that have cost type 'average cost'. Then products that represent 80% of the total get a code A, 15% of the total get a B, the remaining 5% get C.

Please advise
Renate
(0030403)
sivaraman (reporter)
2010-08-27 11:12

 Hi Renate,

However two different logics were used, both results almost same value. The problem here is they are inaccurate in precisions. For example, The logic in report would result 8.7679684757493791(percentage) while the logic in update results 8.76796847574937898400(percentage). This small difference in percentage causes their category significantly as the first one takes A and the second one takes C. In the fix, I truncated the precision value to 6 digit before calculating the category. Thus, the same category is updated as its displayed in the report.

Pertaining to Category assigning logic, we would require Gorka Ion's comment.

Regards,
Siva

- Issue History
Date Modified Username Field Change
2010-08-12 09:41 RenateNieuwkoop New Issue
2010-08-12 09:41 RenateNieuwkoop Assigned To => adrianromero
2010-08-12 09:41 RenateNieuwkoop File Added: 120810Pareto1.png
2010-08-12 13:40 adrianromero Status new => scheduled
2010-08-12 13:40 adrianromero fix_in_branch => pi
2010-08-16 11:25 adrianromero fix_in_branch pi =>
2010-08-16 11:25 adrianromero Steps to Reproduce Updated View Revisions
2010-08-16 12:00 adrianromero Relationship added related to 0008189
2010-08-19 07:47 sivaraman Assigned To adrianromero => sivaraman
2010-08-19 08:05 hgbot Checkin
2010-08-19 08:05 hgbot Note Added: 0030135
2010-08-19 08:05 hgbot Status scheduled => resolved
2010-08-19 08:05 hgbot Resolution open => fixed
2010-08-19 08:05 hgbot Fixed in SCM revision => http://code.openbravo.com/erp/devel/pi/rev/8f81c01795f0ec7894975e6a1dc11843de20f23d [^]
2010-08-19 08:15 sivaraman Note Added: 0030136
2010-08-21 00:06 hudsonbot Checkin
2010-08-21 00:06 hudsonbot Note Added: 0030198
2010-08-23 10:55 sureshbabu Note Added: 0030219
2010-08-23 10:55 sureshbabu Status resolved => closed
2010-08-23 11:53 adrianromero Relationship added related to 0010612
2010-08-24 09:22 RenateNieuwkoop Note Added: 0030242
2010-08-27 11:12 sivaraman Note Added: 0030403
2010-09-13 12:38 anonymous sf_bug_id 0 => 3065166
