Project:
View Issue Details[ Jump to Notes ] | [ Issue History ] [ Print ] | |||||||
ID | ||||||||
0050856 | ||||||||
Type | Category | Severity | Reproducibility | Date Submitted | Last Update | |||
defect | [Openbravo ERP] 04. Warehouse management | minor | always | 2022-11-11 12:16 | 2023-02-21 09:43 | |||
Reporter | XABIER_AGUADO | View Status | public | |||||
Assigned To | AtulOpenbravo | |||||||
Priority | normal | Resolution | fixed | Fixed in Version | ||||
Status | closed | Fix in branch | Fixed in SCM revision | |||||
Projection | none | ETA | none | Target Version | ||||
OS | Any | Database | Any | Java version | ||||
OS Version | Database version | Ant version | ||||||
Product Version | SCM revision | |||||||
Review Assigned To | ||||||||
Web browser | ||||||||
Modules | Core | |||||||
Regression level | ||||||||
Regression date | ||||||||
Regression introduced in release | ||||||||
Regression introduced by commit | ||||||||
Triggers an Emergency Pack | No | |||||||
Summary | 0050856: The scan behaviour for DO is not very clear, should behave like IC | |||||||
Description | When the scan is not successful for a DO(product not in the product repository for instance): A pop-up notification appears in green at top right of the screen The “Scan” icon is in red but we can not access it (by clicking on it) to have details (like in the “Count”). This is confusing for the user, the notification should be readable and shown in red when the scan is not successful + the scan icon should be clickable and showing details about the scan failure, like it currently behaves for IC. | |||||||
Steps To Reproduce | Log in on AWO On the menu select distribution order Select a warehouse and a BIN Once on the DO main screen scan a real EAN. I.E: 36071716318107 A pop-up notification appears in green at top right of the screen Scan a fake EAN: 360X7171631810 A pop-up notification appears in green at top right of the screen | |||||||
Proposed Solution | The notification should appear clearly to user in order to inform that there was a problem in the scan (product not existing for instance) The notification should be in Red warning the user about the scan failure. The scan icon should be in red and Clickable showing the details about the scan failure like in the Count window | |||||||
Tags | FASH | |||||||

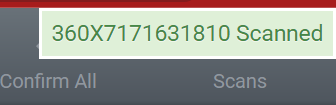

Attached Files | Screenshot 2022-11-11 121628.png [^] (10,492 bytes) 2022-11-11 12:16
| |||||||
Relationships [ Relation Graph ] [ Dependency Graph ] | |
Notes | |
(0146304) mtaal (manager) 2023-02-09 12:11 |
Point 1: In obawo-utils.js, every time we scan a code, a success message is shown along with the scanned code irrespective of the whether it is a success or failure. OBAWO.Utils.globalKeypressHandler = function(inSender, inEvent) { var which = inEvent.keyboardEvent.which; var keeper = document.getElementById('_focusKeeper'); var scanedCode; OB.debug('[mgscan] globalKeyPressHandler which is ' + which); if (OB.MobileApp.view.scanMode && OB.MobileApp.model.get('useBarcode')) { // scanning using focusKeeper, take the value in the focusKeeper // some scanners do not send events for each character, that's why // the whole contents of focusKeeper are taken if (keeper && which === 13) { OB.info( '[mgscan] globalKeyPressHandler enter key registered, keeper value is: ' + keeper.value ); if (keeper.value && keeper.value.length > 0) { scanedCode = keeper.value; OB.UTIL.showSuccess(OB.I18N.getLabel('OBAWO_Scanned', [scanedCode])); keeper.value = ''; if (inEvent && inEvent.callback) { inEvent.callback(scanedCode); } } } } }; If we remove this line then we are able to see properly the red and green colour for scan button in case of invalid or valid scan code respectively. Attached are the videos from Inventory Count and Distribution Order screens. [50586_DistributionOrder.webm, 50586_InventoryCount.webm] Problem was that red icon code gets hide behind the success notification in the above code hence it is not visible to user. If we remove the line then the icon is visible properly as shown in the attached videos. [After50586_InventoryCount.webm, After50586_DistributionOrder.webm] I am not sure about this solution whether this would be correct way to fix this or adjust some UI to move the scan icon in DO screen so it is visible clearly. Please suggest. Point 2: The scan button was disabled in obawo-distributionorder-view.js i.e this.$.scanButton.setDisabled(true); mentioning FIXME: Disable till Create Box, Confirm Box and Scan functionality are developed If we remove the above line, scan history is properly shown in a popup as in the Inventory Count screen. |
(0146429) AtulOpenbravo (developer) 2023-02-13 11:26 |
Test Plan - Log in on AWO Front End - Navigate to the menu: Distribution Order - Select a warehouse and a bin - In DO main screen scan product with valid EAN. For eg: 1234 - A pop-up notification appears in green at top right of the screen - Scan a invalid EAN: For eg: 9876 - A pop-up notification appears in green at top right of the screen and scan button is highlighted with red color. - Realize that scan button is clickable and opens up a pop up with scan history. |
(0146430) hgbot (developer) 2023-02-13 11:30 |
Merge Request created: https://gitlab.com/openbravo/product/pmods/org.openbravo.warehouse.advancedwarehouseoperations.distributionorders/-/merge_requests/44 [^] |
(0146804) hgbot (developer) 2023-02-21 09:43 |
Directly closing issue as related merge request is already approved. Repository: https://gitlab.com/openbravo/product/pmods/org.openbravo.warehouse.advancedwarehouseoperations.distributionorders [^] Changeset: 6fe64f2da306ebbb884d3b3f7f22172ba4be4cf7 Author: Atul Gaware <atul.gaware@openbravo.com> Date: 21-02-2023 08:42:54 URL: https://gitlab.com/openbravo/product/pmods/org.openbravo.warehouse.advancedwarehouseoperations.distributionorders/-/commit/6fe64f2da306ebbb884d3b3f7f22172ba4be4cf7 [^] Fixes BUG-0050856: The scan behaviour for DO is not very clear, should behave like IC **Scan button is enabled in DO screen to show the scan history in popup --- M web/org.openbravo.warehouse.advancedwarehouseoperations.distributionorders/source/obawo-distributionorder-view.js --- |
(0146805) hgbot (developer) 2023-02-21 09:43 |
Merge request merged: https://gitlab.com/openbravo/product/pmods/org.openbravo.warehouse.advancedwarehouseoperations.distributionorders/-/merge_requests/44 [^] |
Issue History | |||
Date Modified | Username | Field | Change |
2022-11-11 12:16 | XABIER_AGUADO | New Issue | |
2022-11-11 12:16 | XABIER_AGUADO | Assigned To | => Triage Omni WMS |
2022-11-11 12:16 | XABIER_AGUADO | File Added: Screenshot 2022-11-11 121628.png | |
2022-11-11 12:16 | XABIER_AGUADO | Modules | => Core |
2022-11-11 12:16 | XABIER_AGUADO | Triggers an Emergency Pack | => No |
2022-11-11 12:16 | XABIER_AGUADO | Tag Attached: FASH | |
2022-11-11 12:31 | XABIER_AGUADO | Type | feature request => defect |
2022-11-11 12:32 | XABIER_AGUADO | Summary | The scan failure notification is not very clear => The scan behaviour is not very clear |
2022-11-11 12:32 | XABIER_AGUADO | Proposed Solution updated | |
2022-11-14 13:09 | XABIER_AGUADO | Summary | The scan behaviour is not very clear => The scan behaviour for DO is not very clear, should behave like IC |
2022-11-14 13:09 | XABIER_AGUADO | Description Updated | View Revisions |
2022-11-14 13:09 | XABIER_AGUADO | Proposed Solution updated | |
2023-02-09 12:11 | mtaal | Assigned To | Triage Omni WMS => AtulOpenbravo |
2023-02-09 12:11 | mtaal | Note Added: 0146304 | |
2023-02-13 11:16 | AtulOpenbravo | Status | new => scheduled |
2023-02-13 11:26 | AtulOpenbravo | Note Added: 0146429 | |
2023-02-13 11:30 | hgbot | Note Added: 0146430 | |
2023-02-21 09:43 | hgbot | Resolution | open => fixed |
2023-02-21 09:43 | hgbot | Status | scheduled => closed |
2023-02-21 09:43 | hgbot | Note Added: 0146804 | |
2023-02-21 09:43 | hgbot | Note Added: 0146805 |
