View Issue Details[ Jump to Notes ] [ Issue History ] [ Print ]
ID
0049291
TypeCategorySeverityReproducibilityDate SubmittedLast Update
feature request[Modules] Openbravo Business APIminorhave not tried2022-05-11 12:132024-01-03 12:17
ReportercaristuView Statuspublic
Assigned ToTriage Platform Conn
PriorityhighResolutionfixedFixed in Version
StatusclosedFix in branchFixed in SCM revision
ProjectionnoneETAnoneTarget Version
OSAnyDatabaseAnyJava version
OS VersionDatabase versionAnt version
Product VersionSCM revision
Merge Request Statusapproved
Regression date
Regression introduced by commit
Regression level
Review Assigned To
Support ticket
OBNetwork customerNo
Regression introduced in release
Summary

0049291: Properties mapped with java property mappings are not documented properly

DescriptionProperties mapped with java property mappings are not properly documented in the endpoints documentation

https://openbravo.atlassian.net/browse/RM-7764 [^]
Steps To Reproduce0) Go to https://livebuilds.openbravo.com/retail_modules_pgsql_pi/api [^]

- Import mappings:

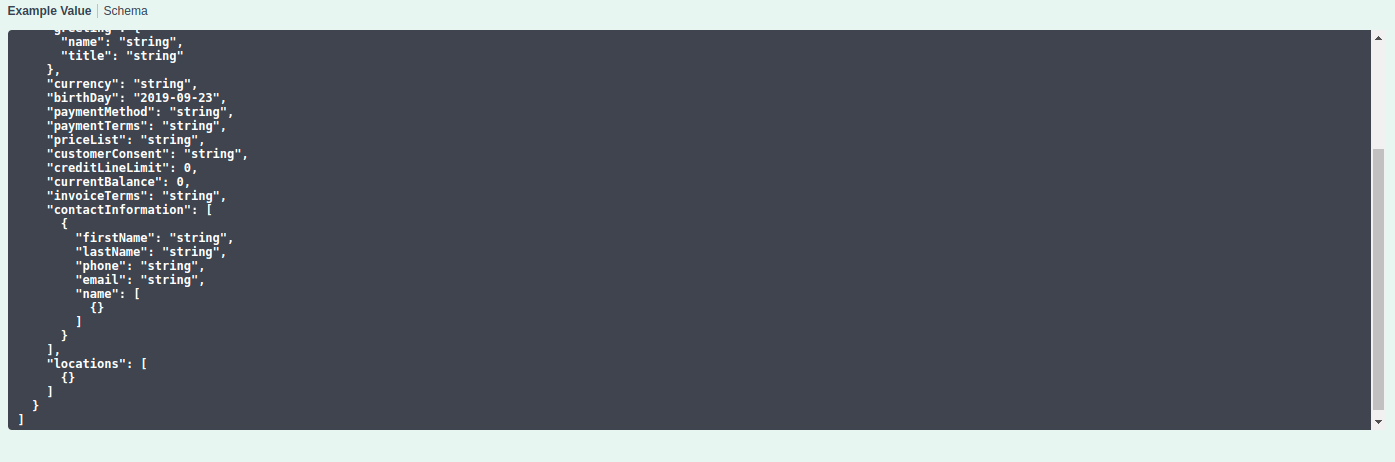

1) Choose the Business Partner import service. Currently this entity mapping has a java property mapping for the locations field
2) Go to the Example Value. Note that the locations field example is just [{}] without any information of its inner structure

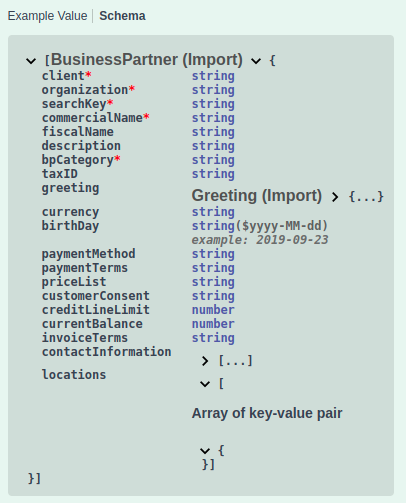

3) Expand the schema, note that the locations field type is: "Array of key-value pair {}]". This is used even if the property is not array...
- Export mappings:

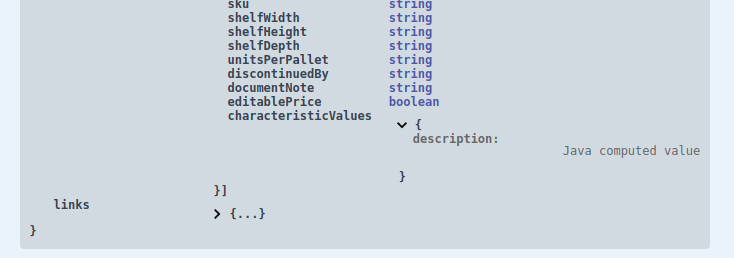

1) Choose the Product service. Currently this entity mapping has a java property mapping for the characteristicValues field
2) Go to the Example Value. Note that the characteristicValues field example is just {} without any information of its inner structure
3) Expand the schema, note that the characteristicValues field type just is: "{ description:Java computed value }"

TagsNo tags attached.
Attached Filespng file icon swagger1.png [^] (50,028 bytes) 2022-05-11 12:15


png file icon swagger2.png [^] (50,709 bytes) 2022-05-11 12:15


png file icon swagger3.png [^] (28,996 bytes) 2022-05-11 12:16

- Relationships [ Relation Graph ] [ Dependency Graph ]
related to feature request 0044599 closedTriage Platform Conn Retail Modules Add more context information for the Retail API endpoint fields documentation
related to defect 0052565 closedvmromanos Modules API documentation fields
blocks defect 0053906 closedvmromanos Modules Add documentation for Java Property Mapping Handlers - OMNI

-  Notes
(0155873)
hgbot (developer)
2023-10-16 10:57

 Merge Request created: https://gitlab.com/openbravo/product/pmods/org.openbravo.api/-/merge_requests/198 [^]
(0155874)
hgbot (developer)
2023-10-16 10:57

 Merge Request created: https://gitlab.com/openbravo/product/pmods/org.openbravo.service.external.integration/-/merge_requests/35 [^]
(0155875)
hgbot (developer)
2023-10-16 11:10

 Merge Request created: https://gitlab.com/openbravo/product/openbravo/-/merge_requests/1021 [^]
(0155876)
hgbot (developer)
2023-10-16 11:16

 Merge request closed: https://gitlab.com/openbravo/product/openbravo/-/merge_requests/1021 [^]
(0156750)
hgbot (developer)
2023-11-06 10:42

 Merge request merged: https://gitlab.com/openbravo/product/pmods/org.openbravo.service.external.integration/-/merge_requests/35 [^]
(0156751)
hgbot (developer)
2023-11-06 10:42

 Directly closing issue as related merge request is already approved.

Repository: https://gitlab.com/openbravo/product/pmods/org.openbravo.service.external.integration [^]
Changeset: 7b8a64a3207485ba3864780b24a09732abab1ca4
Author: Ander Flores <ander.flores@openbravo.com>
Date: 06-11-2023 10:41:43
URL: https://gitlab.com/openbravo/product/pmods/org.openbravo.service.external.integration/-/commit/7b8a64a3207485ba3864780b24a09732abab1ca4 [^]

Fixed FR-49291: support documenting java property mappings

---
A src-test/org/openbravo/service/external/integration/StandaloneTestSuite.java
A src-test/org/openbravo/service/external/integration/mapping/documentation/PropertyDocumentationTest.java
A src/org/openbravo/service/external/integration/mapping/documentation/ArrayPropertyDocumentation.java
A src/org/openbravo/service/external/integration/mapping/documentation/BooleanPropertyDocumentation.java
A src/org/openbravo/service/external/integration/mapping/documentation/DatePropertyDocumentation.java
A src/org/openbravo/service/external/integration/mapping/documentation/DateTimePropertyDocumentation.java
A src/org/openbravo/service/external/integration/mapping/documentation/IntegerPropertyDocumentation.java
A src/org/openbravo/service/external/integration/mapping/documentation/NumberPropertyDocumentation.java
A src/org/openbravo/service/external/integration/mapping/documentation/ObjectPropertyDocumentation.java
A src/org/openbravo/service/external/integration/mapping/documentation/PropertyDocumentation.java
A src/org/openbravo/service/external/integration/mapping/documentation/PropertyDocumentationTransformer.java
A src/org/openbravo/service/external/integration/mapping/documentation/StringPropertyDocumentation.java
M src/org/openbravo/service/external/integration/mapping/JavaPropertyMappingHandler.java
---
(0156752)
hgbot (developer)
2023-11-06 10:43

 Repository: https://gitlab.com/openbravo/product/pmods/org.openbravo.api [^]
Changeset: d7235c5cba073581e723e4d7bb7eb2567246d69e
Author: Ander Flores <ander.flores@openbravo.com>
Date: 06-11-2023 09:43:26
URL: https://gitlab.com/openbravo/product/pmods/org.openbravo.api/-/commit/d7235c5cba073581e723e4d7bb7eb2567246d69e [^]

related to FR-49291: support documenting API java property mappings

---
A src-test/org/openbravo/api/openapi/ApiPropertyDocumentationTransformerTest.java
A src/org/openbravo/api/openapi/ApiPropertyDocumentationTransformer.java
M src-test/org/openbravo/api/StandaloneTestSuite.java
M src/org/openbravo/api/mappings/inventory/ImportInventoryJavaPropertyMappingHandler.java
M src/org/openbravo/api/mappings/shipmentinout/ShipmentInOutJavaPropertyMappingHandler.java
M src/org/openbravo/api/openapi/OpenApiEntityMapping.java
---
(0156753)
hgbot (developer)
2023-11-06 10:43

 Merge request merged: https://gitlab.com/openbravo/product/pmods/org.openbravo.api/-/merge_requests/198 [^]
(0158721)
hgbot (developer)
2023-12-29 11:24

 Repository: https://gitlab.com/openbravo/customers/saboraespana/snapshots [^]
Changeset: f98474406b506ec64bc49a092df94c9c882bc380
Author: Kepa Choperena <kepa.choperena@openbravo.com>
Date: 29-12-2023 11:24:05
URL: https://gitlab.com/openbravo/customers/saboraespana/snapshots/-/commit/f98474406b506ec64bc49a092df94c9c882bc380 [^]

Updated Snapshot_Dev. Included ISSUE-53736 & ISSUE-49291.

https://issues.openbravo.com/view.php?id=53736. [^]
https://issues.openbravo.com/view.php?id=53564 [^]

---
M Snapshot_Dev
---
(0158791)
hgbot (developer)
2024-01-03 12:17

 Repository: https://gitlab.com/openbravo/customers/saboraespana/snapshots [^]
Changeset: 763ec4269bb04deb00d973d20904e253a2c554d3
Author: Kepa Choperena <kepa.choperena@openbravo.com>
Date: 03-01-2024 12:17:35
URL: https://gitlab.com/openbravo/customers/saboraespana/snapshots/-/commit/763ec4269bb04deb00d973d20904e253a2c554d3 [^]

Revert "Updated Snapshot_Dev. Included ISSUE-53736 & ISSUE-49291."

This reverts commit f98474406b506ec64bc49a092df94c9c882bc380.

---
M Snapshot_Dev
---

- Issue History
Date Modified Username Field Change
2022-05-11 12:13 caristu New Issue
2022-05-11 12:13 caristu Assigned To => Triage Platform Conn
2022-05-11 12:13 caristu OBNetwork customer => No
2022-05-11 12:13 caristu Triggers an Emergency Pack => No
2022-05-11 12:13 caristu Issue generated from 0044614
2022-05-11 12:14 caristu Project Retail Modules => Modules
2022-05-11 12:14 caristu Category Retail API => Openbravo Business API
2022-05-11 12:15 caristu File Added: swagger1.png
2022-05-11 12:15 caristu File Added: swagger2.png
2022-05-11 12:16 caristu File Added: swagger3.png
2022-05-11 12:16 caristu Status new => acknowledged
2022-05-11 12:16 caristu Relationship added related to 0044599
2023-08-01 04:11 Practics Issue Monitored: Practics
2023-08-08 10:21 alostale Type defect => feature request
2023-08-10 07:11 alostale Description Updated View Revisions
2023-08-24 12:53 caristu Relationship added related to 0052565
2023-10-16 10:57 hgbot Merge Request Status => open
2023-10-16 10:57 hgbot Note Added: 0155873
2023-10-16 10:57 hgbot Note Added: 0155874
2023-10-16 11:10 hgbot Note Added: 0155875
2023-10-16 11:16 hgbot Note Added: 0155876
2023-11-06 10:42 hgbot Merge Request Status open => approved
2023-11-06 10:42 hgbot Note Added: 0156750
2023-11-06 10:42 hgbot Resolution open => fixed
2023-11-06 10:42 hgbot Status acknowledged => closed
2023-11-06 10:42 hgbot Note Added: 0156751
2023-11-06 10:43 hgbot Note Added: 0156752
2023-11-06 10:43 hgbot Note Added: 0156753
2023-11-09 19:04 vmromanos Relationship added blocks 0053906
2023-12-29 11:24 hgbot Note Added: 0158721
2024-01-03 12:17 hgbot Note Added: 0158791
