View Issue Details[ Jump to Notes ] [ Issue History ] [ Print ]
ID
0046148
TypeCategorySeverityReproducibilityDate SubmittedLast Update
defect[Retail Modules] Web POSmajoralways2021-03-25 15:052021-05-14 12:19
ReporterlmonrealView Statuspublic
Assigned Toadrianromero
PriorityurgentResolutionfixedFixed in VersionRR21Q3
StatusclosedFix in branchFixed in SCM revision
ProjectionnoneETAnoneTarget Version
OSAnyDatabaseAnyJava version
OS VersionDatabase versionAnt version
Product VersionSCM revision
Merge Request Statusapproved
Review Assigned To
OBNetwork customerGold
Support ticket
Regression level
Regression date
Regression introduced in release
Regression introduced by commit
Triggers an Emergency PackNo
Summary

0046148: Size two labels in HM not aligned

DescriptionSize two labels are not aligned:
<line size="2">
    <text align="center" length="42"><%= OB.UTIL.encodeXMLComponent(OB.I18N.getLabel('XXXX')) %></text>
</line>

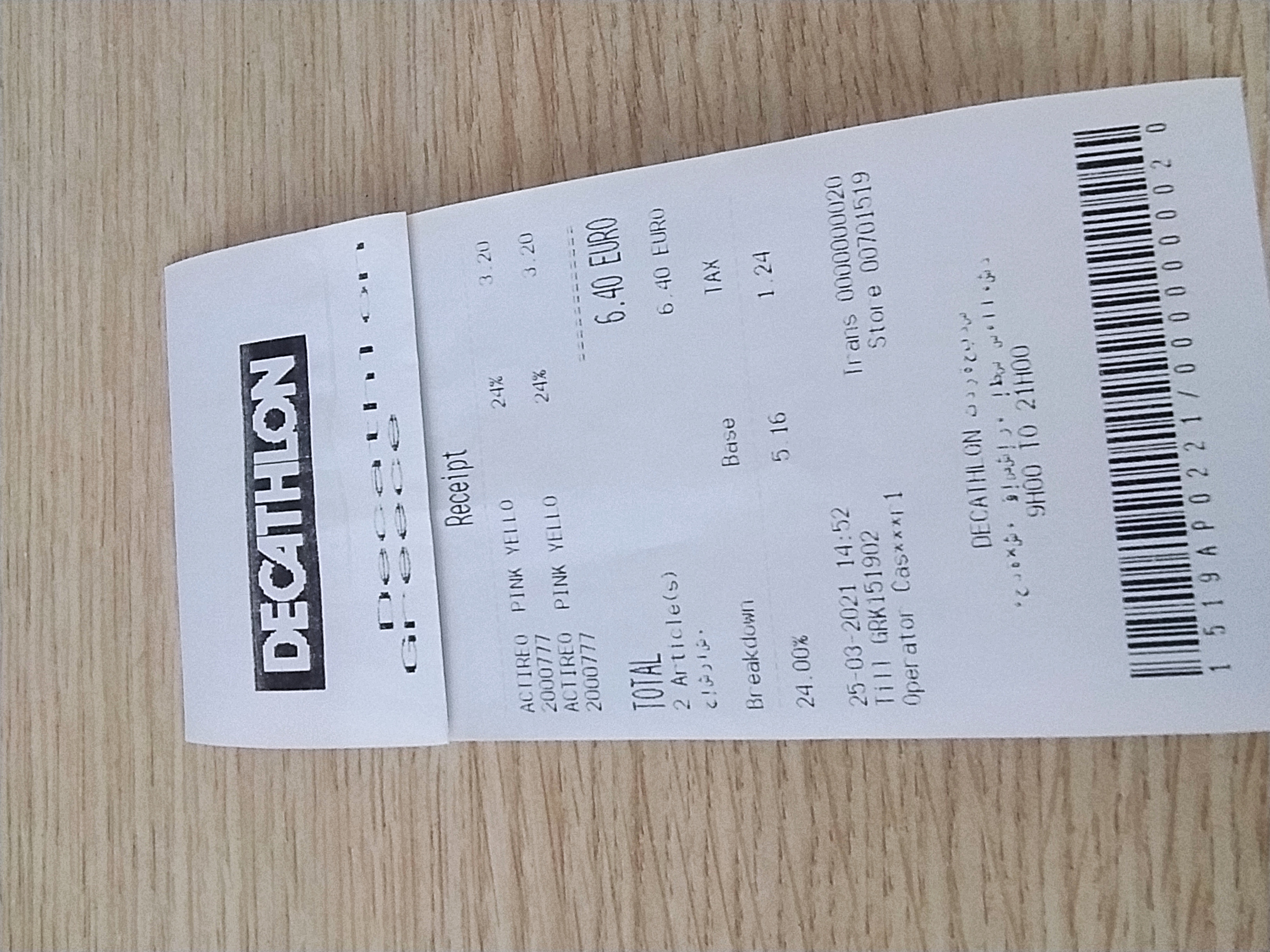

In the HM it is displayed Ok but when testing with a printer (TH230+) the header is not aligned (see attachment)
Steps To ReproduceSee attachment.
Proposed SolutionSee attachement issue-0046148.diff
TagsNo tags attached.
Attached Filesjpg file icon Ticket.jpg [^] (3,134,940 bytes) 2021-03-25 15:05
diff file icon issue-0046148.diff [^] (1,558 bytes) 2021-04-09 12:39 [Show Content]

- Relationships [ Relation Graph ] [ Dependency Graph ]

-  Notes
(0127411)
hgbot (developer)
2021-04-21 11:57

 Merge Request created: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources/-/merge_requests/20 [^]
(0128116)
hgbot (developer)
2021-05-14 11:57

 Merge request merged: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources/-/merge_requests/20 [^]
(0128117)
hgbot (developer)
2021-05-14 11:57

 Directly closing issue as related merge request is already approved.

Repository: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources [^]
Changeset: 857cf3b4b34c2f80b723bddaec8c0af6987859d9
Author: Adrián Romero <adrian.romero@openbravo.com>
Date: 2021-05-14T08:59:16+02:00
URL: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources/-/commit/857cf3b4b34c2f80b723bddaec8c0af6987859d9 [^]

FIXES ISSUE-0046148: Size two labels in HM not aligned
* Fixes ESC/POS codes for TH230+ for font sizes

---
M project/src/com/openbravo/pos/printer/escpos/CodesWincor.java
---
(0128118)
hgbot (developer)
2021-05-14 11:57

 Repository: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources [^]
Changeset: e416395aa2419a315a586abafbffe8ee6aec24ab
Author: Adrián Romero <adrian.romero@openbravo.com>
Date: 2021-05-14T08:59:16+02:00
URL: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources/-/commit/e416395aa2419a315a586abafbffe8ee6aec24ab [^]

RELATED ISSUE-0046148: Adds Poxiflex 7600X to usb file as Wincor compatible printer

---
M project/src/META-INF/usbdevices.xml
---
(0128119)
hgbot (developer)
2021-05-14 11:57

 Repository: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources [^]
Changeset: a304f09475ea9e4002b73d0ff568a5b95e8022af
Author: Adrián Romero <adrian.romero@openbravo.com>
Date: 2021-05-14T08:59:16+02:00
URL: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources/-/commit/a304f09475ea9e4002b73d0ff568a5b95e8022af [^]

RELATED ISSUE-0046148: Fixes Poxifles USB ID

---
M project/src/META-INF/usbdevices.xml
---
(0128120)
hgbot (developer)
2021-05-14 11:57

 Repository: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources [^]
Changeset: 8296e0ec1127485957b59ee997af25086f087ca8
Author: Adrián Romero <adrian.romero@openbravo.com>
Date: 2021-05-14T08:59:16+02:00
URL: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources/-/commit/8296e0ec1127485957b59ee997af25086f087ca8 [^]

RELATED ISSUE-0046148: Adds CodesPoxiflex class

---
A project/src/com/openbravo/pos/printer/escpos/CodesPosiflex.java
A project/src/com/openbravo/pos/printer/escpos/USBDevicePrinterPosiflex.java
M project/src/META-INF/usbdevices.xml
---
(0128121)
hgbot (developer)
2021-05-14 11:57

 Repository: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources [^]
Changeset: 8af83194e8781d8f45168928b22b4a1a4af664a2
Author: Adrián Romero <adrian.romero@openbravo.com>
Date: 2021-05-14T08:59:16+02:00
URL: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources/-/commit/8af83194e8781d8f45168928b22b4a1a4af664a2 [^]

RELATED ISSUE-0046148: Adds partial codes to CodesPoxiflex class

---
M project/src/com/openbravo/pos/printer/escpos/CodesPosiflex.java
---
(0128122)
hgbot (developer)
2021-05-14 12:14

 Directly closing issue as related merge request is already approved.

Repository: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources [^]
Changeset: ec10bcb994597268f511b718e04a26de799136c2
Author: Adrián Romero <adrian.romero@openbravo.com>
Date: 2021-05-14T11:34:10+02:00
URL: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager.sources/-/commit/ec10bcb994597268f511b718e04a26de799136c2 [^]

FIXES ISSUE-0046148: Size two labels in HM not aligned

---
A project/src/com/openbravo/pos/printer/escpos/CodesPosiflex.java
A project/src/com/openbravo/pos/printer/escpos/USBDevicePrinterPosiflex.java
M project/src/META-INF/usbdevices.xml
M project/src/com/openbravo/pos/printer/escpos/CodesWincor.java
---
(0128123)
hgbot (developer)
2021-05-14 12:19

 Directly closing issue as related merge request is already approved.

Repository: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager [^]
Changeset: 41bdab5db891838fb2d48d752257d2d8df016b08
Author: Adrián Romero <adrian.romero@openbravo.com>
Date: 2021-05-14T12:18:51+02:00
URL: https://gitlab.com/openbravo/product/pmods/org.openbravo.retail.poshwmanager/-/commit/41bdab5db891838fb2d48d752257d2d8df016b08 [^]

FIXES ISSUE-0046148: Size two labels in HM not aligned

---
M bin/poshw.jar
M bin/rev.id
---
