View Issue Details[ Jump to Notes ] [ Issue History ] [ Print ]
ID
0037919
TypeCategorySeverityReproducibilityDate SubmittedLast Update
defect[Openbravo ERP] A. Platformtrivialhave not tried2018-02-15 08:542018-03-05 16:39
ReporteralostaleView Statuspublic
Assigned Toalostale
PrioritynormalResolutionfixedFixed in Version3.0PR18Q2
StatusclosedFix in branchFixed in SCM revisionca9d0d95c9b7
ProjectionnoneETAnoneTarget Version
OSAnyDatabaseAnyJava version
OS VersionDatabase versionAnt version
Product VersionSCM revision
Merge Request Status
Review Assigned ToAugustoMauch
OBNetwork customerNo
Web browser
ModulesCore
Support ticket
Regression level
Regression date
Regression introduced in release
Regression introduced by commit
Triggers an Emergency PackNo
Summary

0037919: some contention on session creation, deactivation and check

Descriptionorg.openbravo.erpCommon.security.SessionListener keeps a Set of sessions in current node in order to perform checks for CU. All actions in that set need to be synchronized in order to guarantee thread safety.

This synchronization in cases of very high concurrency causes some contention, specially if CU is reached and existing sessions need to be checked, which is the most expensive action, in this case session creation and deactivation is contained.
Steps To ReproduceModify org.openbravo.test.system.Sessions test to generate 10K sessions in 10 threads and execute it. Check it takes around 250s to complete.

0 [main] INFO org.openbravo.test.system.Sessions - Starting 10 threads to create 10000 sessions each
200817 [pool-2-thread-7] INFO org.openbravo.test.system.Sessions - Thread finished in 200480 ms
216782 [pool-2-thread-1] INFO org.openbravo.test.system.Sessions - Thread finished in 216447 ms
217398 [pool-2-thread-9] INFO org.openbravo.test.system.Sessions - Thread finished in 217061 ms
227083 [pool-2-thread-3] INFO org.openbravo.test.system.Sessions - Thread finished in 226746 ms
227770 [pool-2-thread-2] INFO org.openbravo.test.system.Sessions - Thread finished in 227433 ms
230525 [pool-2-thread-6] INFO org.openbravo.test.system.Sessions - Thread finished in 230188 ms
233148 [pool-2-thread-8] INFO org.openbravo.test.system.Sessions - Thread finished in 232811 ms
237709 [pool-2-thread-10] INFO org.openbravo.test.system.Sessions - Thread finished in 237372 ms
247972 [pool-2-thread-4] INFO org.openbravo.test.system.Sessions - Thread finished in 247635 ms
251520 [pool-2-thread-5] INFO org.openbravo.test.system.Sessions - Thread finished in 251183 ms
251603 [main] INFO org.openbravo.test.system.Sessions - All finished in 251269 ms
Proposed SolutionUse a set backed from a ConcurrentHashMap so synchronization does not need to be done by external code, which simplifies the code as well as reduces contention limiting it to internal buckets rather than to the whole object.

After this change time is reduced to 47s:

0 [main] INFO org.openbravo.test.system.Sessions - Starting 10 threads to create 10000 sessions each
45711 [pool-2-thread-6] INFO org.openbravo.test.system.Sessions - Thread finished in 45363 ms
46570 [pool-2-thread-4] INFO org.openbravo.test.system.Sessions - Thread finished in 46222 ms
46573 [pool-2-thread-1] INFO org.openbravo.test.system.Sessions - Thread finished in 46226 ms
46808 [pool-2-thread-2] INFO org.openbravo.test.system.Sessions - Thread finished in 46460 ms
47108 [pool-2-thread-7] INFO org.openbravo.test.system.Sessions - Thread finished in 46759 ms
47138 [pool-2-thread-8] INFO org.openbravo.test.system.Sessions - Thread finished in 46789 ms
47392 [pool-2-thread-9] INFO org.openbravo.test.system.Sessions - Thread finished in 47043 ms
47473 [pool-2-thread-5] INFO org.openbravo.test.system.Sessions - Thread finished in 47125 ms
47764 [pool-2-thread-10] INFO org.openbravo.test.system.Sessions - Thread finished in 47415 ms
47818 [pool-2-thread-3] INFO org.openbravo.test.system.Sessions - Thread finished in 47470 ms
47833 [main] INFO org.openbravo.test.system.Sessions - All finished in 47486 ms
TagsPerformance

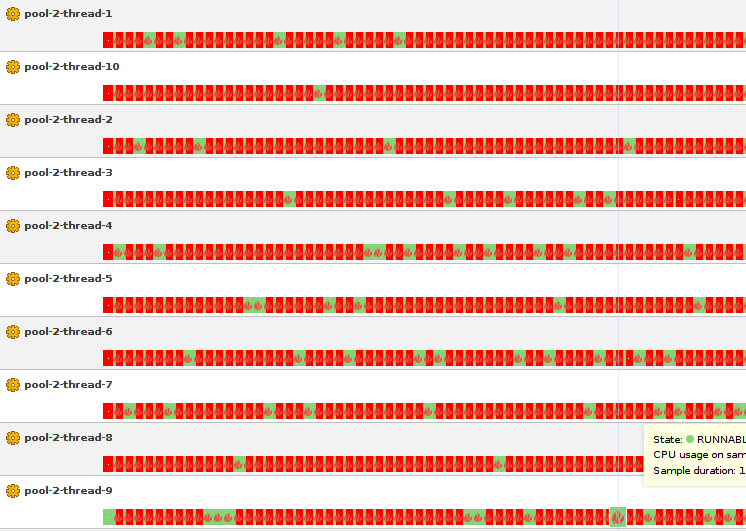

Attached Filespng file icon 37919-before.png [^] (21,556 bytes) 2018-02-15 14:35

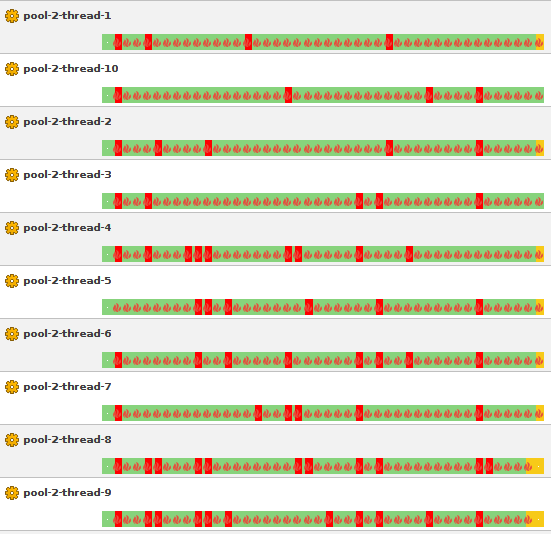

png file icon 37919-after.png [^] (19,259 bytes) 2018-02-15 14:35

- Relationships [ Relation Graph ] [ Dependency Graph ]

-  Notes
(0102437)
hgbot (developer)
2018-02-15 14:38

 Repository: erp/devel/pi
Changeset: ca9d0d95c9b718fd01574d9d0c3d659882b31b2e
Author: Asier Lostalé <asier.lostale <at> openbravo.com>
Date: Thu Feb 15 14:37:32 2018 +0100
URL: http://code.openbravo.com/erp/devel/pi/rev/ca9d0d95c9b718fd01574d9d0c3d659882b31b2e [^]

fiexed bug 37919: contention on session creation, deactivation and check

  Replaced HashSet that required to be externally synchronized with a Set backed
  with a ConcurrentHashMap which better handles synchronization.

---
M src-test/src/org/openbravo/test/system/Sessions.java
M src/org/openbravo/erpCommon/security/SessionListener.java
---
(0102766)
hudsonbot (viewer)
2018-02-22 18:19

 A changeset related to this issue has been promoted main and to the
Central Repository, after passing a series of tests.

Promotion changeset: https://code.openbravo.com/erp/devel/main/rev/980a6ad5bbf5 [^]
Maturity status: Test
(0102982)
AugustoMauch (administrator)
2018-03-05 16:39

 Code reviewed and verified

- Issue History
Date Modified Username Field Change
2018-02-15 08:54 alostale New Issue
2018-02-15 08:54 alostale Assigned To => platform
2018-02-15 08:54 alostale OBNetwork customer => No
2018-02-15 08:54 alostale Modules => Core
2018-02-15 08:54 alostale Triggers an Emergency Pack => No
2018-02-15 14:30 alostale Severity minor => trivial
2018-02-15 14:30 alostale Summary contention on session creation, deactivation and check => some contention on session creation, deactivation and check
2018-02-15 14:30 alostale Steps to Reproduce Updated View Revisions
2018-02-15 14:30 alostale Proposed Solution updated
2018-02-15 14:32 alostale Proposed Solution updated
2018-02-15 14:35 alostale File Added: 37919-before.png
2018-02-15 14:35 alostale File Added: 37919-after.png
2018-02-15 14:35 alostale Tag Attached: Performance
2018-02-15 14:38 hgbot Checkin
2018-02-15 14:38 hgbot Note Added: 0102437
2018-02-15 14:39 alostale Assigned To platform => alostale
2018-02-15 14:39 alostale Status new => scheduled
2018-02-15 14:39 alostale Status scheduled => resolved
2018-02-15 14:39 alostale Fixed in SCM revision => ca9d0d95c9b7
2018-02-15 14:39 alostale Resolution open => fixed
2018-02-15 14:39 alostale Review Assigned To => AugustoMauch
2018-02-22 18:19 hudsonbot Checkin
2018-02-22 18:19 hudsonbot Note Added: 0102766
2018-03-05 16:39 AugustoMauch Note Added: 0102982
2018-03-05 16:39 AugustoMauch Status resolved => closed
2018-03-05 16:39 AugustoMauch Fixed in Version => 3.0PR18Q2
