View Issue Details[ Jump to Notes ] [ Issue History ] [ Print ]
ID
0022902
TypeCategorySeverityReproducibilityDate SubmittedLast Update
feature request[Openbravo ERP] A. Platformmajoralways2013-01-26 17:402013-03-02 05:48
ReporterdbazView Statuspublic
Assigned Todbaz
PriorityhighResolutionfixedFixed in Version3.0MP20
StatusclosedFix in branchpiFixed in SCM revision603290cb6a8a
ProjectionnoneETAnoneTarget Version
OSAnyDatabaseAnyJava version
OS VersionDatabase versionAnt version
Product VersionSCM revision
Review Assigned Tomtaal
Web browser
ModulesCore
Regression level
Regression date
Regression introduced in release
Regression introduced by commit
Triggers an Emergency PackNo
Summary

0022902: Create a "Print" link button to be used within QueryList widget

DescriptionCreate a "Print" link button to be used within QueryList widget.

This canvas component will be set inside the "Clientclass" field of the "Widget -> Query -> Column"
Steps To ReproduceSee the comments.
TagsNo tags attached.
Attached Filespng file icon TestCase.png [^] (82,397 bytes) 2013-01-26 21:08

- Relationships [ Relation Graph ] [ Dependency Graph ]
related to feature request 0022901 closeddbaz Add "clientClass" field to QueryList widget and standarize its definition way

-  Notes
(0055880)
dbaz (developer)
2013-01-26 21:16

 Risk: low/medium


0) Test that previous print buttons are still working ok

As "Openbravo Admin"
* Go to "Sales Order"
* Select any record
* Click "Print" toolbar button. Ensure that you can do "just printing" and "print + attack"

As "Openbravo Admin"
* Go to "Business Partner"
* Select any record
* Click "Print" toolbar button. Ensure that the popup is shown


1) Add simple "Print" button

As "System Administrator"
* Go to "Widget" window
* Select record with "Widget Title": "Invoices to collect"
* Go to "Query" subtab
* Go to "Column" subtab

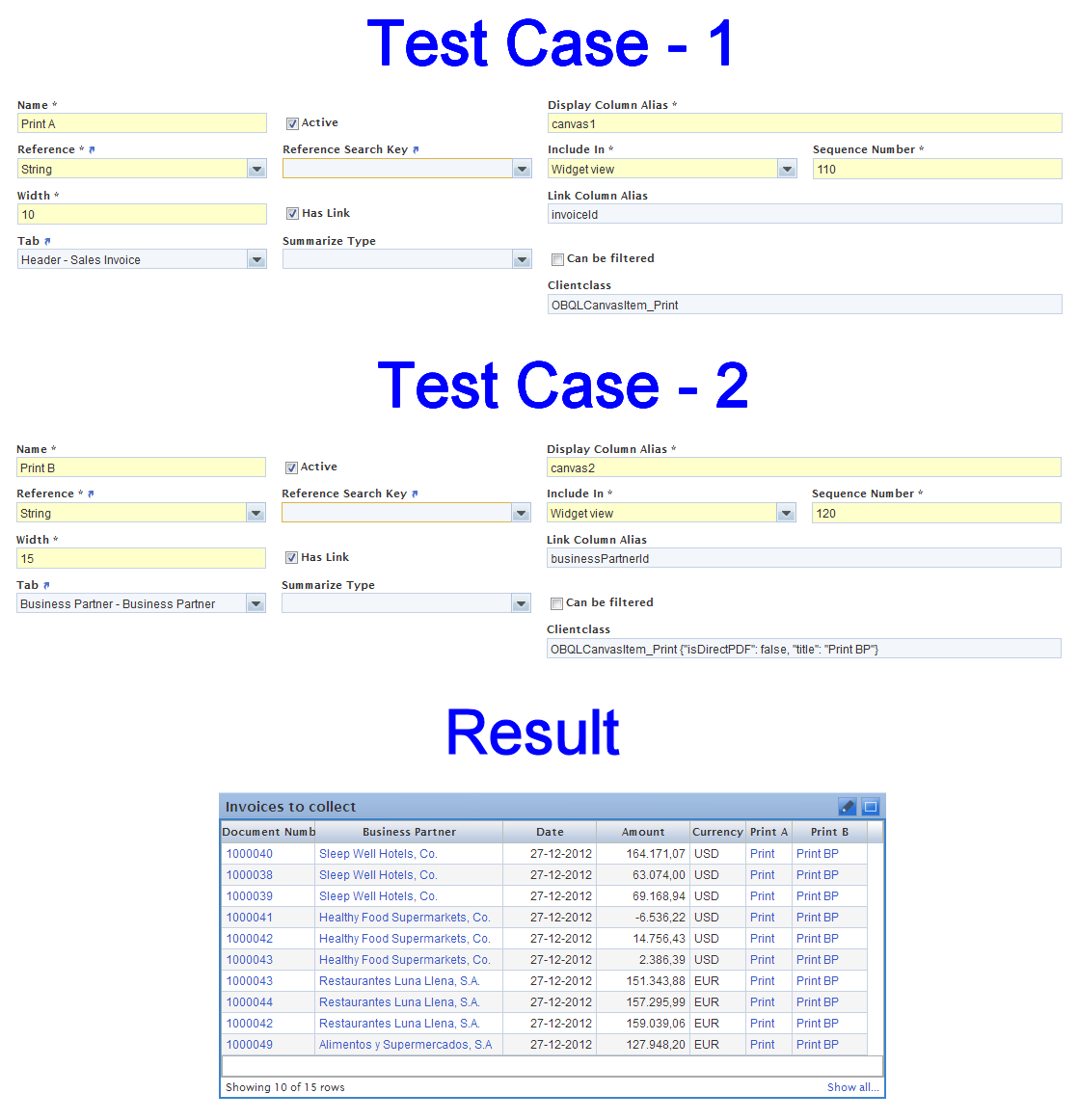

* Create new record with the values of the attached png (Test Case - 1)
* Save


2) Add complex "Print" button

As "System Administrator"
* Go to "Widget" window
* Select record with "Widget Title": "Invoices to collect"
* Go to "Query" subtab
* Go to "Column" subtab
* Create new record with the values of the attached png (Test Case - 2)
* Save


3) Test the result

As "Openbravo Admin"
* Add "Invoices to collect" widget
* Ensure that "Print A" and "Print B" columns are added, and that the Print buttons work ok. Note that for "Print A" case the button should just print the record, without any kind of notification/popup
(0055882)
hgbot (developer)
2013-01-26 21:53

 Repository: erp/devel/pi
Changeset: 603290cb6a8ae0459ac4a2c34d7bea0a161eed51
Author: David Baz Fayos <david.baz <at> openbravo.com>
Date: Sat Jan 26 21:51:40 2013 +0100
URL: http://code.openbravo.com/erp/devel/pi/rev/603290cb6a8ae0459ac4a2c34d7bea0a161eed51 [^]

Fixed issue 22902: Added 'Print' link button to be used in QueryList widgets

---
M modules/org.openbravo.client.application/src-db/database/sourcedata/AD_MESSAGE.xml
M modules/org.openbravo.client.application/src/org/openbravo/client/application/window/OBViewTab.java
M modules/org.openbravo.client.application/web/org.openbravo.client.application/js/classic/ob-classic-compatibility.js
M modules/org.openbravo.client.querylist/src/org/openbravo/client/querylist/QueryListUtils.java
M modules/org.openbravo.client.querylist/web/org.openbravo.client.querylist/js/ob-querylist-canvas-item.js
M src/org/openbravo/erpCommon/businessUtility/PrinterReports.html
M src/org/openbravo/erpCommon/businessUtility/PrinterReports.java
M src/org/openbravo/erpCommon/businessUtility/PrinterReports.xml
M src/org/openbravo/erpCommon/utility/reporting/printing/PrintController.java
M src/org/openbravo/erpCommon/utility/reporting/printing/PrintOptions.html
M src/org/openbravo/erpCommon/utility/reporting/printing/PrintOptions.xml
---
(0055887)
hudsonbot (developer)
2013-01-27 11:34

 A changeset related to this issue has been promoted main and to the
Central Repository, after passing a series of tests.

Promotion changeset: https://code.openbravo.com/erp/devel/main/rev/7b271be20db9 [^]

Maturity status: Test
(0055890)
mtaal (manager)
2013-01-27 18:52

 The tests work fine, I am not sure about the format of test case 2 format, will check/review in the other issue.

Other code comments:

Code review:
https://code.openbravo.com/erp/devel/pi/rev/603290cb6a8ae0459ac4a2c34d7bea0a161eed51#l2.24 [^]
would it make sense to log a warning that no url can be determined?

https://code.openbravo.com/erp/devel/pi/rev/603290cb6a8ae0459ac4a2c34d7bea0a161eed51#l3.38 [^]
why call cPopup.hide(), why not prevent the cPopup.show() one line higher?

https://code.openbravo.com/erp/devel/pi/rev/603290cb6a8ae0459ac4a2c34d7bea0a161eed51#l4.15 [^]
the if clause is quite generic (hasLink), while it only sets a printUrl, the if should be:
if (column.isPrintLink())
Or isHasLink has multiple usages?

https://code.openbravo.com/erp/devel/pi/rev/603290cb6a8ae0459ac4a2c34d7bea0a161eed51#l6.34 [^]
typo (probably from previous versions): Commnad instead of Command
(0055959)
dbaz (developer)
2013-01-30 00:24
edited on: 2013-01-30 00:44

 The test case 2 is an advanced one just for demonstration purposes (I don't think nobody is going to use it) if you set the things as are in the screenshot, it should work. It doesn't work for you, or you mean another different thing?

About the other comments:


1) There could be the case of isHasLink, but no "printUrl" for a particular tab, and I don't think have log writting each time it doesn't have "printUrl" be a good idea... It could sound like a warning, when it isn't.
In fact, my idea of getPrintUrl was: give me the url if exists or "" (or null) if it doesn't exist, but without any special emphasis if there is no printUrl for this particular tab. Anyway, no strong opinion on this point

2) I tried, but if I avoid directly cPopup.show(), some logic (the iframe code addition hack) doesn't work (several JS erros appear), so the show() needs to be called.

3) isHasLink is the field "Has Link". It is used before for example to determine that a field is going to be a link to its window (determined by the "Tab" combo box). For the particular case of the print button, it needs all the parameters sent by the isHasLink check
https://code.openbravo.com/erp/devel/pi/file/603290cb6a8a/modules/org.openbravo.client.querylist/src/org/openbravo/client/querylist/QueryListUtils.java#l67 [^]
but also I need the "printURL". Since a user can create any other kind of print link clientClass (for example, one with a icon button with a printer instead of the link), I have forced to retreive always this parameter too (when clientClass + hasLink are both present).
I understand your point of add another check "is Print" to have this "printUrl" only in these cases, but I think is make the model more complex for a feature (the new Clientcanvas field) that will be used in the 90% of the cases by adding a Print button, so I would remain it as it is

4) Is not a typo. If you look at this line, it was "Command" also before my changes:
https://code.openbravo.com/erp/devel/pi/rev/603290cb6a8ae0459ac4a2c34d7bea0a161eed51#l6.33 [^]
In fact, I tried to change it to "Command", but then a security error raises. (You can try yourself) Since it is an old implementation and it will be refactored, I prefer leave it as it is (as it was) and don't complicate searching the root problem (it should be another different issue)
(0055961)
mtaal (manager)
2013-01-30 08:53

 Reviewed
(0056533)
hgbot (developer)
2013-02-19 02:36

 Repository: erp/devel/pi
Changeset: 62f8bcb0a259ee149b395e52882d4739546c8eea
Author: David Baz Fayos <david.baz <at> openbravo.com>
Date: Tue Feb 19 02:35:46 2013 +0100
URL: http://code.openbravo.com/erp/devel/pi/rev/62f8bcb0a259ee149b395e52882d4739546c8eea [^]

Related to issue 22902: Now 'OBGridLinkLinkItem' is more customizable

---
M modules/org.openbravo.client.application/web/org.openbravo.client.application/js/form/formitem/ob-formitem-canvas.js
M modules/org.openbravo.client.application/web/org.openbravo.client.application/js/grid/ob-grid.js
M modules/org.openbravo.client.application/web/org.openbravo.userinterface.smartclient/openbravo/skins/Default/org.openbravo.client.application/ob-grid-styles.js
---
(0056623)
hudsonbot (developer)
2013-02-20 04:51

 A changeset related to this issue has been promoted main and to the
Central Repository, after passing a series of tests.

Promotion changeset: https://code.openbravo.com/erp/devel/main/rev/d828167a9e83 [^]

Maturity status: Test
(0056749)
hgbot (developer)
2013-02-25 16:55

 Repository: erp/devel/pi
Changeset: 7a7aac0d8227ee17bdc82eda3b79262cf45307d0
Author: David Baz Fayos <david.baz <at> openbravo.com>
Date: Mon Feb 25 16:54:50 2013 +0100
URL: http://code.openbravo.com/erp/devel/pi/rev/7a7aac0d8227ee17bdc82eda3b79262cf45307d0 [^]

Related to issue 22902: Created standalone OBUIAPP_PrintGridLink label

---
M modules/org.openbravo.client.application/src-db/database/sourcedata/AD_MESSAGE.xml
M modules/org.openbravo.client.querylist/web/org.openbravo.client.querylist/js/ob-querylist-canvas-item.js
---
(0056820)
hgbot (developer)
2013-02-27 16:51

 Repository: erp/devel/pi
Changeset: 1b1bae8573e83de0329470505e4dc4cd303d2f30
Author: Víctor Martínez Romanos <victor.martinez <at> openbravo.com>
Date: Wed Feb 27 16:51:01 2013 +0100
URL: http://code.openbravo.com/erp/devel/pi/rev/1b1bae8573e83de0329470505e4dc4cd303d2f30 [^]

Issue 22902: Print label doesn't displayed for summary columns

---
M modules/org.openbravo.client.querylist/web/org.openbravo.client.querylist/js/ob-querylist-canvas-item.js
---
(0056853)
hudsonbot (developer)
2013-02-28 16:39

 A changeset related to this issue has been promoted main and to the
Central Repository, after passing a series of tests.

Promotion changeset: https://code.openbravo.com/erp/devel/main/rev/8c5cb16254f4 [^]

Maturity status: Test
(0056925)
hudsonbot (developer)
2013-03-02 05:48

 A changeset related to this issue has been promoted main and to the
Central Repository, after passing a series of tests.

Promotion changeset: https://code.openbravo.com/erp/devel/main/rev/f5db629e7058 [^]

Maturity status: Test

- Issue History
Date Modified Username Field Change
2013-01-26 17:40 dbaz New Issue
2013-01-26 17:40 dbaz Assigned To => dbaz
2013-01-26 17:40 dbaz Modules => Core
2013-01-26 17:40 dbaz Triggers an Emergency Pack => No
2013-01-26 17:40 dbaz Relationship added related to 0022901
2013-01-26 21:08 dbaz File Added: TestCase.png
2013-01-26 21:16 dbaz Note Added: 0055880
2013-01-26 21:52 dbaz Review Assigned To => mtaal
2013-01-26 21:53 hgbot Checkin
2013-01-26 21:53 hgbot Note Added: 0055882
2013-01-26 21:53 hgbot Status new => resolved
2013-01-26 21:53 hgbot Resolution open => fixed
2013-01-26 21:53 hgbot Fixed in SCM revision => http://code.openbravo.com/erp/devel/pi/rev/603290cb6a8ae0459ac4a2c34d7bea0a161eed51 [^]
2013-01-27 11:34 hudsonbot Checkin
2013-01-27 11:34 hudsonbot Note Added: 0055887
2013-01-27 18:52 mtaal Note Added: 0055890
2013-01-30 00:24 dbaz Note Added: 0055959
2013-01-30 00:40 dbaz Status resolved => new
2013-01-30 00:40 dbaz Resolution fixed => open
2013-01-30 00:44 dbaz Note Edited: 0055959 View Revisions
2013-01-30 00:44 dbaz Status new => scheduled
2013-01-30 00:44 dbaz fix_in_branch => pi
2013-01-30 00:45 dbaz Status scheduled => resolved
2013-01-30 00:45 dbaz Resolution open => fixed
2013-01-30 08:53 mtaal Note Added: 0055961
2013-01-30 08:53 mtaal Status resolved => closed
2013-01-30 08:53 mtaal Fixed in Version => 3.0MP20
2013-02-19 02:36 hgbot Checkin
2013-02-19 02:36 hgbot Note Added: 0056533
2013-02-20 04:51 hudsonbot Checkin
2013-02-20 04:51 hudsonbot Note Added: 0056623
2013-02-25 16:55 hgbot Checkin
2013-02-25 16:55 hgbot Note Added: 0056749
2013-02-27 16:51 hgbot Checkin
2013-02-27 16:51 hgbot Note Added: 0056820
2013-02-28 16:39 hudsonbot Checkin
2013-02-28 16:39 hudsonbot Note Added: 0056853
2013-03-02 05:48 hudsonbot Checkin
2013-03-02 05:48 hudsonbot Note Added: 0056925
