Project:
View Issue Details[ Jump to Notes ] | [ Issue History ] [ Print ] | |||||||
ID | ||||||||
0037324 | ||||||||
Type | Category | Severity | Reproducibility | Date Submitted | Last Update | |||
defect | [Openbravo ERP] A. Platform | major | have not tried | 2017-11-20 11:59 | 2018-01-03 12:39 | |||
Reporter | alostale | View Status | public | |||||
Assigned To | alostale | |||||||
Priority | urgent | Resolution | fixed | Fixed in Version | 3.0PR18Q1 | |||
Status | closed | Fix in branch | Fixed in SCM revision | b817e5607d8b | ||||
Projection | none | ETA | none | Target Version | ||||
OS | Any | Database | Any | Java version | ||||
OS Version | Database version | Ant version | ||||||
Product Version | SCM revision | |||||||
Review Assigned To | caristu | |||||||
Web browser | ||||||||
Modules | Core | |||||||
Regression level | ||||||||
Regression date | ||||||||
Regression introduced in release | ||||||||
Regression introduced by commit | ||||||||
Triggers an Emergency Pack | No | |||||||
Summary | 0037324: slow login having many preferences | |||||||
Description | In a system with some thousands of preferences, depending on how they are distributed, login (both in back-office and POS) can last up to some seconds. Two different cases detected with different configurations: == Case 1: many visible preferences == Thousands of preferences visible from the client/org/role that is performing the login. Testing this case with 8K preferences defined at system level, login requests took up to 40s. This case, even possible, it's a bit hypothetical, not that probable to occur in a real instance. == Case 2: preferences defined in readable org, but not visible due to "visible at org" field == Having thousands of preferences defined on an organization that is in the parent tree of the one that is used for current login, login time takes up to extra 2s even those preferences are set as not visible through the "visible at org" field. This case can occur for example in a real instance with many (in the steps emulating 500) organizations all of them children of a common parent. Preferences are defined in parent one, and visibility limited of each of the children. | |||||||

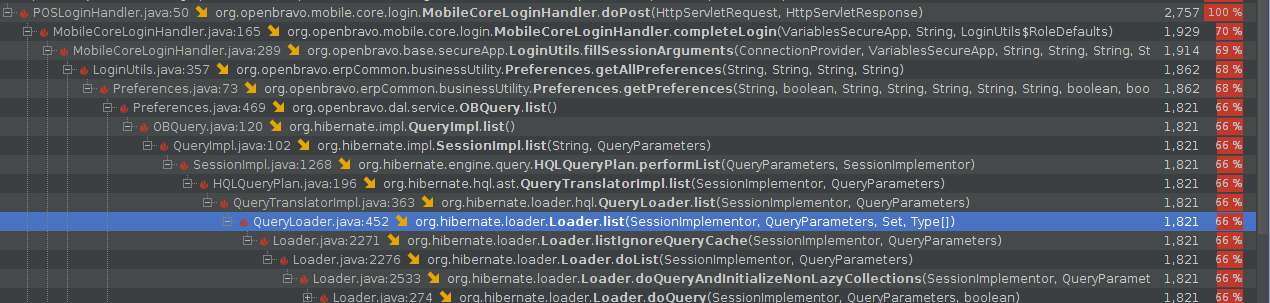

Steps To Reproduce | Following cases are reproducible in an instance with Openbravo for Retail installed. 1. case 1 1.1. Create 8K preferences at System level, visible from all roles: insert into ad_preference (ad_preference_id, ad_client_id, ad_org_id, createdby, updatedby, attribute, value, ispropertylist) select get_uuid(), '0', '0', '0', '0', 'visible-all-'||s, 'v:'||s, 'N' from generate_series(1,8000) s; 1.2. Login WebPOS -> It takes up to 40s to complete, note most of this time is spent at Preferneces.getPreferenceFromList (see Selection_230.png) 2. case 2 2.1. for each preference defined in WebPOS module, insert up to 500 instances, all of them with ad_org_id being in a common parent org (ie in The White Valley Group), but limiting visibility though visibleat_org_id to some no org not visible in login (ie. Central Mountains Store) insert into ad_preference (ad_preference_id, ad_client_id, ad_org_id, createdby, updatedby, property, value, ispropertylist, visibleat_org_id) slect get_uuid(), '39363B0921BB4293B48383844325E84C', -- Client: The White Valley Group '67839EEFA49E44AC969BD60093FCC899', -- Org: The White Valley Group '0', '0', value, 'v:'||s, 'Y', '3B187EC130A549A7A9388F8060EF156D' -- visible at org: Central Mountains Store from ad_ref_list, generate_series(1,500) s where ad_module_id ='FF808181326CC34901326D53DBCF0018' and ad_reference_id ='A26BA480E2014707B47257024C3CBFF7' -- all POS preferences 2.2 login WebPOS with 'Demo user' on its default 'Vallblanca' organization, which cannot see 'Central Mountains Store' -> login request take up to 4s, in this case, time is spent in loading DAL objects in memory | |||||||
Proposed Solution | After fixing both cases, time drops to less than 200ms for 1st case and less than 100ms for 2nd one. | |||||||
Tags | Performance | |||||||
Attached Files | Selection_230.png [^] (38,360 bytes) 2017-11-20 12:35
Selection_231.png [^] (73,305 bytes) 2017-11-20 12:50 | |||||||
Relationships [ Relation Graph ] [ Dependency Graph ] | ||||||||||||||||||||||
|
Notes | |
(0100637) hgbot (developer) 2017-11-21 09:58 |
Repository: erp/devel/pi Changeset: f422e1ebac8e738f9855d871d63d3727d4bd349d Author: Asier Lostalé <asier.lostale <at> openbravo.com> Date: Mon Nov 20 13:11:31 2017 +0100 URL: http://code.openbravo.com/erp/devel/pi/rev/f422e1ebac8e738f9855d871d63d3727d4bd349d [^] fixed bug 37324: slow login having many preferences - case 1 Retrieving all preferences for current role/org was slow having thousands of visible preferences because of how duplicate preferences with different visibility were checked. This check was performed by sequentially scanning a list of already saved preferences to verify whether current one was already in the list. It has now fixed by keeping a temporary map of preferences where the key defines if preference is the same or not, in this way it is not necessary to iterate over all the entries each time. --- M src/org/openbravo/erpCommon/businessUtility/Preferences.java --- |
(0100638) hgbot (developer) 2017-11-21 09:58 |
Repository: erp/devel/pi Changeset: b817e5607d8b45760927890f6f3e3558028c1c1c Author: Asier Lostalé <asier.lostale <at> openbravo.com> Date: Mon Nov 20 13:24:45 2017 +0100 URL: http://code.openbravo.com/erp/devel/pi/rev/b817e5607d8b45760927890f6f3e3558028c1c1c [^] fixed bug 37324: slow login having many preferences - case 2 When there were thousands of preferences with ad_org visible from current org but not visible through visible at org field, loading all preferences was slow. The problem was, all those preferences were loaded as DAL objects to filter out later in memory those that were not visible. This gets fixed by filtering out directly in the query so that no unneeded rows are retrived from DB to instantiate DAL objects that later will be discarded immediatelly. --- M src/org/openbravo/erpCommon/businessUtility/Preferences.java --- |
(0100641) alostale (manager) 2017-11-21 10:07 |
Related changesets not detected automatically: changeset: 33029:27c3e6dd6f54 user: Asier Lostalé <asier.lostale@openbravo.com> date: Tue Nov 21 09:50:10 2017 +0100 summary: related to 37324: renamed PreferenceTest methods changeset: 33030:f930ff85c698 tag: tip user: Asier Lostalé <asier.lostale@openbravo.com> date: Tue Nov 21 09:53:27 2017 +0100 summary: related to 37324: added test case for getAllPreferences |
(0100808) caristu (developer) 2017-11-29 11:06 |
Code reviewed + tested OK. |
(0101444) hudsonbot (developer) 2018-01-03 12:39 |
A changeset related to this issue has been promoted main and to the Central Repository, after passing a series of tests. Promotion changeset: https://code.openbravo.com/erp/devel/main/rev/c81e0d3cbab5 [^] Maturity status: Test |
(0101445) hudsonbot (developer) 2018-01-03 12:39 |
A changeset related to this issue has been promoted main and to the Central Repository, after passing a series of tests. Promotion changeset: https://code.openbravo.com/erp/devel/main/rev/c81e0d3cbab5 [^] Maturity status: Test |
Issue History | |||
Date Modified | Username | Field | Change |
2017-11-20 11:59 | alostale | New Issue | |
2017-11-20 11:59 | alostale | Assigned To | => platform |
2017-11-20 11:59 | alostale | Modules | => Core |
2017-11-20 11:59 | alostale | Triggers an Emergency Pack | => No |
2017-11-20 12:00 | alostale | Steps to Reproduce Updated | View Revisions |
2017-11-20 12:08 | alostale | Steps to Reproduce Updated | View Revisions |
2017-11-20 12:10 | alostale | Steps to Reproduce Updated | View Revisions |
2017-11-20 12:10 | alostale | Tag Attached: Performance | |
2017-11-20 12:10 | alostale | Assigned To | platform => alostale |
2017-11-20 12:12 | alostale | Relationship added | depends on 0037112 |
2017-11-20 12:13 | alostale | Relationship added | related to 0035553 |
2017-11-20 12:35 | alostale | File Added: Selection_230.png | |
2017-11-20 12:37 | alostale | Steps to Reproduce Updated | View Revisions |
2017-11-20 12:50 | alostale | File Added: Selection_231.png | |
2017-11-20 12:51 | alostale | Steps to Reproduce Updated | View Revisions |
2017-11-20 13:00 | alostale | Review Assigned To | => caristu |
2017-11-20 13:00 | alostale | Priority | normal => urgent |
2017-11-20 13:00 | alostale | Description Updated | View Revisions |
2017-11-20 14:42 | alostale | Relationship added | related to 0037329 |
2017-11-21 09:58 | hgbot | Checkin | |
2017-11-21 09:58 | hgbot | Note Added: 0100637 | |
2017-11-21 09:58 | hgbot | Status | new => resolved |
2017-11-21 09:58 | hgbot | Resolution | open => fixed |
2017-11-21 09:58 | hgbot | Fixed in SCM revision | => http://code.openbravo.com/erp/devel/pi/rev/f422e1ebac8e738f9855d871d63d3727d4bd349d [^] |
2017-11-21 09:58 | hgbot | Checkin | |
2017-11-21 09:58 | hgbot | Note Added: 0100638 | |
2017-11-21 09:58 | hgbot | Fixed in SCM revision | http://code.openbravo.com/erp/devel/pi/rev/f422e1ebac8e738f9855d871d63d3727d4bd349d [^] => http://code.openbravo.com/erp/devel/pi/rev/b817e5607d8b45760927890f6f3e3558028c1c1c [^] |
2017-11-21 10:07 | alostale | Note Added: 0100641 | |
2017-11-21 10:28 | alostale | Proposed Solution updated | |
2017-11-29 11:06 | caristu | Note Added: 0100808 | |
2017-11-29 11:06 | caristu | Status | resolved => closed |
2017-11-29 11:06 | caristu | Fixed in Version | => 3.0PR18Q1 |
2018-01-03 12:39 | hudsonbot | Checkin | |
2018-01-03 12:39 | hudsonbot | Note Added: 0101444 | |
2018-01-03 12:39 | hudsonbot | Checkin | |
2018-01-03 12:39 | hudsonbot | Note Added: 0101445 |
