View Issue Details
IDProjectCategoryView StatusDate SubmittedLast Update
0027209Openbravo ERPB. User interfacepublic2014-07-27 17:552014-07-29 08:03
Reportergorozcoh
Assigned Todbaz
PriorityhighSeveritymajorReproducibilityalways
StatusclosedResolutionno change required
PlatformOS10OS VersionWindows Server 2008 R2 Standard
Product Version
Target VersionFixed in Version
Merge Request Status
Review Assigned To
OBNetwork customerNo
Web browserGoogle Chrome
ModulesCore
Support ticket
Regression level
Regression date
Regression introduced in release
Regression introduced by commit
Triggers an Emergency PackNo
Summary0027209: Error 404 Open Process PopUp
DescriptionProcess linked to window button do not run. Shows Error 404 Resource not found.
Steps To Reproduce(See Attached Files)
0. Create Openbravo Clean Instance.
1. Create new Module
2. Create Table A in PostgreSQL
3. Create Stored Procedure C (Function) in PostgreSQL
4. Create a process in Report & Process Window using stored procedure C in PostgreSQL.
5. Create Table A with column button
6. Create Window B linked to Table A
7. Try run process in window B
Proposed Solution
Additional Information
TagsNo tags attached.
Relationships
Attached Filesrar ErrorOpenbravo.rar (249,076) 2014-07-27 17:55
https://issues.openbravo.com/file_download.php?file_id=7091&type=bug
png Report and Process Without Java Class.png (86,002) 2014-07-29 02:34
https://issues.openbravo.com/file_download.php?file_id=7097&type=bug
png
Issue History
Date ModifiedUsernameFieldChange
2014-07-27 17:55gorozcohNew Issue
2014-07-27 17:55gorozcohAssigned To => dbaz
2014-07-27 17:55gorozcohFile Added: ErrorOpenbravo.rar
2014-07-27 17:55gorozcohWeb browser => Google Chrome
2014-07-27 17:55gorozcohModules => Core
2014-07-27 17:55gorozcohTriggers an Emergency Pack => No
2014-07-29 01:26dbazNote Added: 0068939
2014-07-29 01:28dbazStatusnew => feedback
2014-07-29 02:34gorozcohFile Added: Report and Process Without Java Class.png
2014-07-29 02:42gorozcohNote Added: 0068940
2014-07-29 08:02alostaleNote Added: 0068941
2014-07-29 08:03alostaleNote Added: 0068942
2014-07-29 08:03alostaleStatusfeedback => closed
2014-07-29 08:03alostaleResolutionopen => no change required

Notes
(0068939)
dbaz
2014-07-29 01:26
In the "Steps to reproduce" I don't see the step where you create the java that handles the process.

I would suggest you to follow this guide:
http://wiki.openbravo.com/wiki/How_to_create_a_Standard_Process_Definition#Java_Implementation [^]

Anyway, if you want to see a real example in core, check this process:
FIN_AddPaymentFromJournal

Where you can see that there is a "Report and Process" created for it, with a "Process Class" associated.

Also, there is a "FIN_AddPaymentFromJournal.java" file that calls the stored procedure. This kind of file is what I miss in your "Steps To Reproduce".
(0068940)
gorozcoh
2014-07-29 02:42
thanks for your kind reply.

In page http://wiki.openbravo.com/wiki/Processes [^] you could see:

Defining Processes

Processes can be of two different types: PL/SQL Processes and Java Processes. PL/SQL processes are implemented in the PL/SQL language and are executed by the database engine. Java proceses are implemented in the Java language and are executed by the application server.

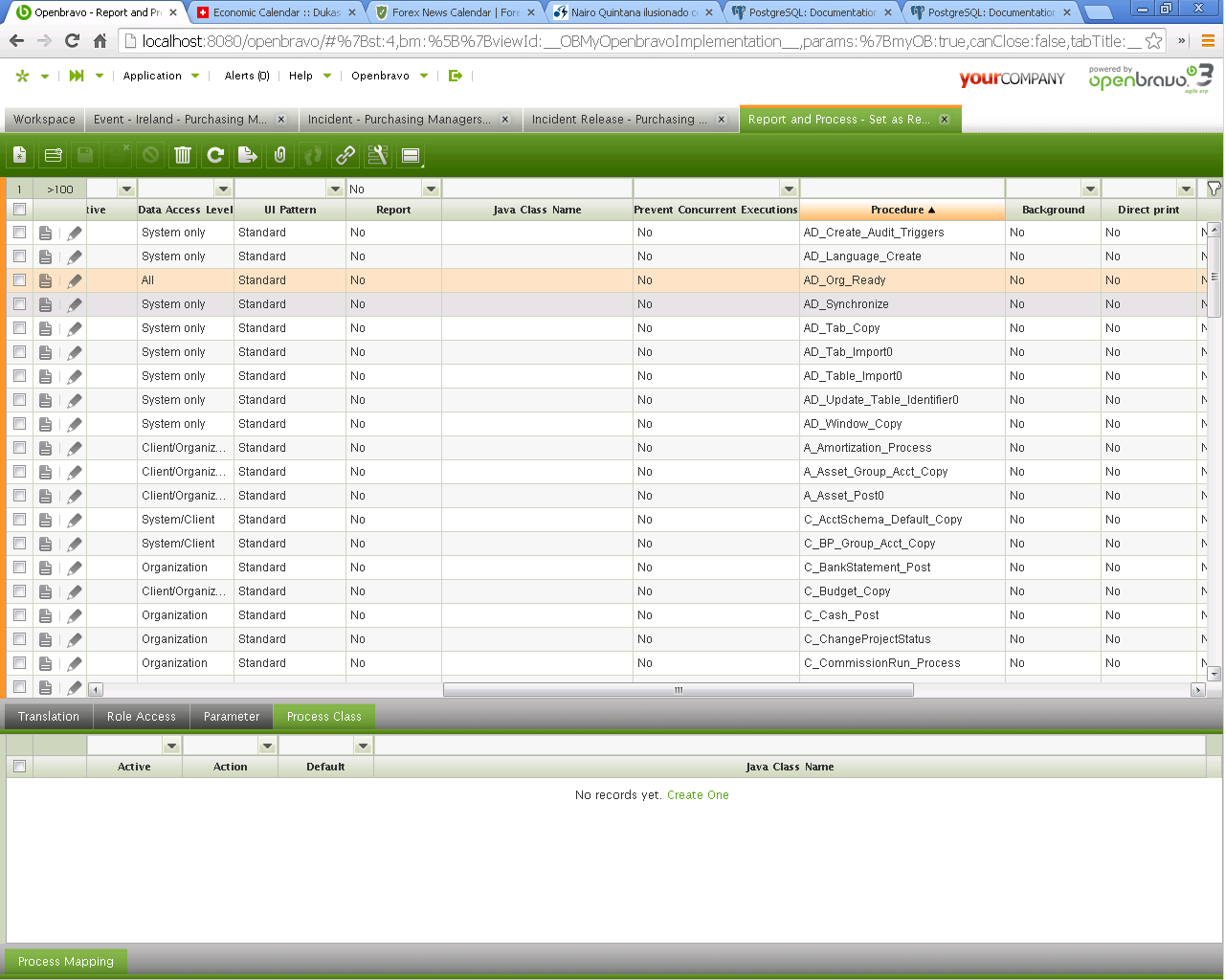

My process is PL/SQL type. Java clas is not required. there are dozens of such processes in openbravo(see file attached Report & Process Without Java Class.png) without java class associated.

I've created and used before such processes in my applications and had never received this error message.
(0068941)
alostale
2014-07-29 08:02
Looks like compilation is missed (I updated documentation with a note to include it). So in your case before step 7 you should run ant smartubuild and restart Tomcat.
(0068942)
alostale
2014-07-29 08:03
Updated documentation http://wiki.openbravo.com/wiki/Processes#Executing_processes [^] to include required compilation step.
